Question

In the circuit shown in (Figure 1) the batteries have negligible internal resistance and the meters are both idealized. With the switch S open, the voltmeter reads 15.0 V. Part A Find the emf ? of the battery. Express your answer in volts. Part B What will the ammeter read when the switch is closed? Express your answer in amperes.

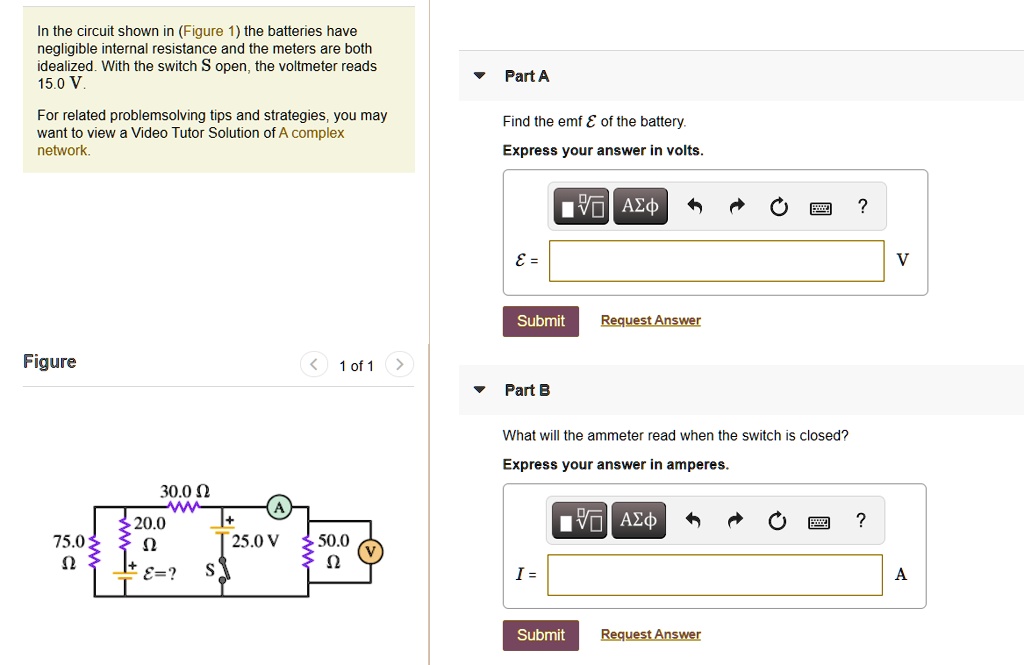

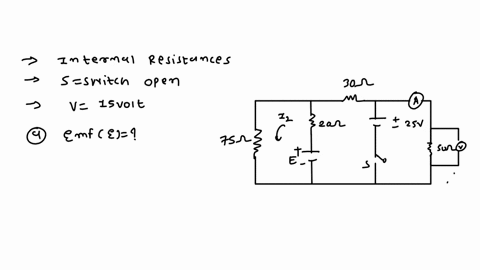

          In the circuit shown in (Figure 1) the batteries have negligible internal resistance and the meters are both idealized. With the switch S open, the voltmeter reads 15.0 V.

Part A
Find the emf ? of the battery.
Express your answer in volts.

Part B
What will the ammeter read when the switch is closed?
Express your answer in amperes.

Show more…

In the circuit shown in (Figure 1) the batteries have negligible internal resistance and the meters are both idealized. With the switch S open, the voltmeter reads 15.0 V.

Part A
Find the emf ? of the battery.
Express your answer in volts.

Part B
What will the ammeter read when the switch is closed?
Express your answer in amperes.

Added by Micheal H.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

03/15/2023

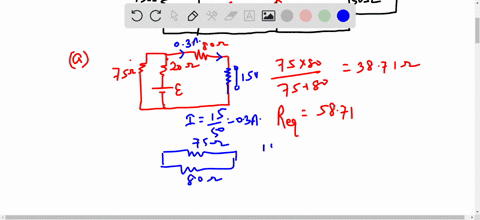

Step 1

When the switch S is open, the voltmeter reads 15.0 V. This means that the potential difference across the 30.0 Ω resistor is 15.0 V. Show more…
