Question

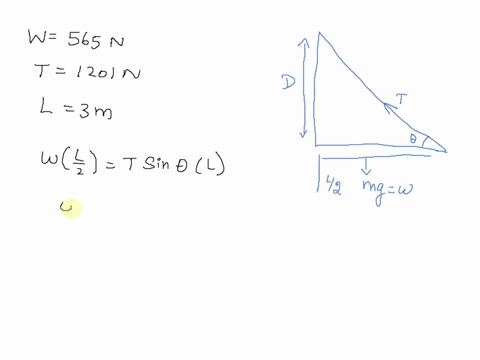

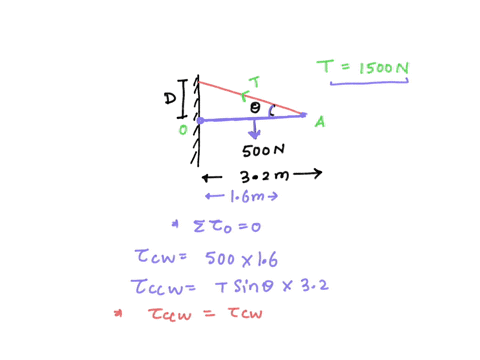

In the figure, a uniform beam of weight 570 N and length 3.3 m is suspended horizontally. On the left it is hinged to a wall; on the right it is supported by a cable bolted to the wall at distance D above the beam. The least tension that will snap the cable is 1500 N. What value of D corresponds to that tension?

Name: in the figure a uniform beam of weight 570 n and length 33 m is suspended horizontally on the left it is hinged to a wall on the right it is supported by a cable bolted to the wall at distan 52382
Uploaded: 2022-06-13T11:21:00-08:00
Duration: 1 min 11 s
Channel: Shaiju T
Description: in the figure a uniform beam of weight 570 n and length 33 m is suspended horizontally on the left it is hinged to a wall on the right it is supported by a cable bolted to the wall at distan 52382

          In the figure, a uniform beam of weight 570 N and length 3.3 m
is suspended horizontally. On the left it is hinged to a wall; on
the right it is supported by a cable bolted to the wall at distance
D above the beam. The least tension that will snap the cable is
1500 N. What value of D corresponds to that tension?

Added by Micheal C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Shaiju T

06/13/2022

Step 1

The torque due to the weight of the beam is given by the formula: Torque = Weight * Distance Torque = 570 N * 3.3 m = 1881 Nm Show more…

Show all steps

Thanks for your feedback!

In the figure, a uniform beam of weight 570 N and length 3.3 m is suspended horizontally. On the left it is hinged to a wall; on the right it is supported by a cable bolted to the wall at distance D above the beam. The least tension that will snap the cable is 1500 N. What value of D corresponds to that tension?
