In the figure below, a current creates a magnetic field. What is the direction of the magnetic field at the indicated point? B? I (a) Up (b) Down (c) Right (d) Left (e) Into the page (f) Out of the page In the figure below, a current creates an magnetic field. What is the direction of the magnetic field at the indicated point? B? (a) Up (b) Down (c) Right (d) Left (e) Into the page (f) Out of the page In the figure below, a current creates an magnetic field. What is the direction of the magnetic field at the indicated point?
Added by Katherine R.
Close
Step 1
In the figure, the current is flowing from left to right. Show more…
Show all steps
Your feedback will help us improve your experience
Supratim Pal and 50 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Four electric currents, equal in magnitude are arranged at the corners of a square as shown in the figure. 1. Two currents go into the page, and two are pointing out of the page. Point a is at the center of the square, and points b and c are in the middle of two of the sides.What is the direction of the magnetic field at point a? a. To the right. b. Down (to the bottom of the page). c. Up (to the top of the page). d. The magnetic field is zero at this point. e. To the left. 2. What is the direction of the magnetic field at point b? a.The magnetic field is zero at this point. b. To the left. c. Up (to the top of the page). d. To the right. e. Down (to the bottom of the page).
Supratim P.
A long straight wire carries a current in the direction shown in the following figure. At the point labeled $A$, is the direction of the magnetic field left, right, up, down, into the page, or out of the page? What is the direction of the magnetic field at the point labeled B? Explain. (FIGURE CANNOT COPY)

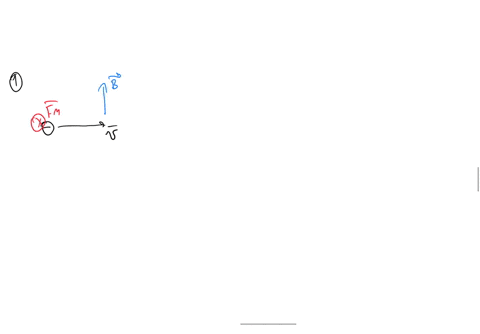

In what direction will the electron in the figure be deflected as it enters the constant magnetic field? A. into the page. B. out of the page. C. no change in direction and magnitude of the velocity. D. no change in velocity but it would slow down. Wire 1 has a current flowing out of the page, ☉, as shown in the figure. Wire 2 has a current flowing into the page, ⊗. What is the direction of the magnetic field at point P? A. upward in the plane of the page B. to the right C. downward in the plane of the page D. to the left E. The magnetic field at point P is zero.
