Question

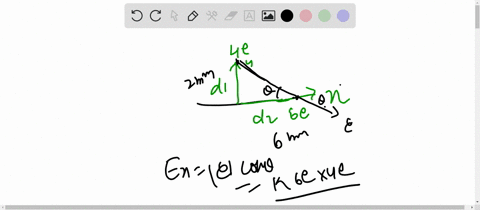

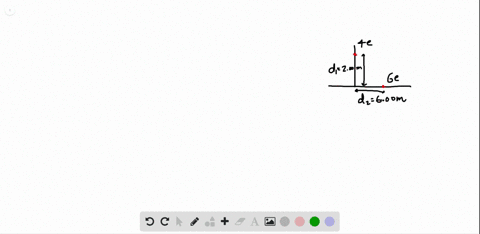

In the figure particle 1 of charge +4e is above a floor by distance $d_1 = 3.60$ mm and particle 2 of charge +6e is on the floor, at distance $d_2 = 6.40$ mm horizontally from particle 1. What is the x component of the electrostatic force on particle 2 due to particle 1? Number i 9.092E-23 Units N

Name: in the figure particle 1 of charge 4e is above a floor by distance d1 360 mm and particle 2 of charge 6e is on the floor at distance d2 640 mm horizontally from particle 1 what is the x co 81289
Uploaded: 2021-08-18T00:54:23-08:00
Duration: 2 min 57 s
Channel: Morgan Cheatham
Description: in the figure particle 1 of charge 4e is above a floor by distance d1 360 mm and particle 2 of charge 6e is on the floor at distance d2 640 mm horizontally from particle 1 what is the x co 81289

          In the figure particle 1 of charge +4e is above a floor by distance $d_1 = 3.60$ mm and particle 2 of charge +6e is on the floor, at distance $d_2 = 6.40$ mm horizontally from particle 1. What is the x component of the electrostatic force on particle 2 due to particle 1?
Number i 9.092E-23
Units N

in the figure particle 1 of charge 4e is above a floor by distance d1 360 mm and particle 2 of charge 6e is on the floor at distance d2 640 mm horizontally from particle 1 what is the x co 81289

Added by Nina M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Morgan Cheatham

08/18/2021

Step 1

We can use the Pythagorean theorem to find the distance $r$ between the two particles: $r = \sqrt{d_1^2 + d_2^2}$ $r = \sqrt{(3.60 \times 10^{-3} \text{ m})^2 + (6.40 \times 10^{-3} \text{ m})^2}$ $r = \sqrt{12.96 \times 10^{-6} + 40.96 \times 10^{-6}} \text{ Show more…
