00:01

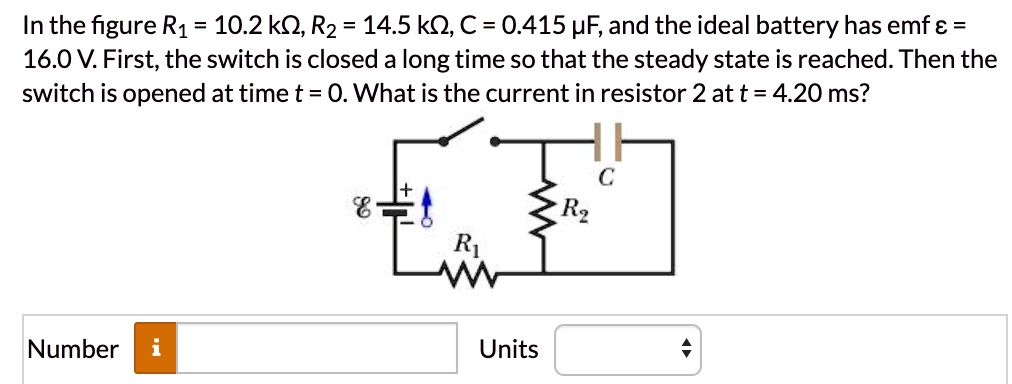

We have been given the circuit diagram as follows.
00:07
There is a battery of emf zi0.
00:11
And there is a switch.
00:14
Then it is connected to a resistance r2.
00:20
And then there is a resistance r1.
00:24
Again there is a capacitor c.
00:27
So, this is basically a rc circuit.
00:31
Here it is resistance r1.
00:33
It is r2.
00:34
Then this is c.
00:37
And here the battery has emf zi.
00:40
This is plus.
00:41
This is minus.
00:42
So, direction of current is in this direction if the switch is closed.
00:46
Now, r1 is given as 10 .2 kilo ohm.
00:51
R2 is given as 14 .5 kilo ohm.
00:56
And c is given as 0 .415 micro farad.
01:02
Emf of the battery zi is given as 16 volt.
01:05
Now, we will see r will be equal to r equivalent.
01:10
It will be equal to r1 plus r2.
01:12
Since both the resistances are in series.
01:15
So, that will be equal to 10 .2 plus 14 .5.
01:19
That is 24 .7 kilo ohm.
01:24
This is r.
01:26
Now, we have zi is equal to 16 volt.
01:32
So, initially i0 will be equal to.....
