Question

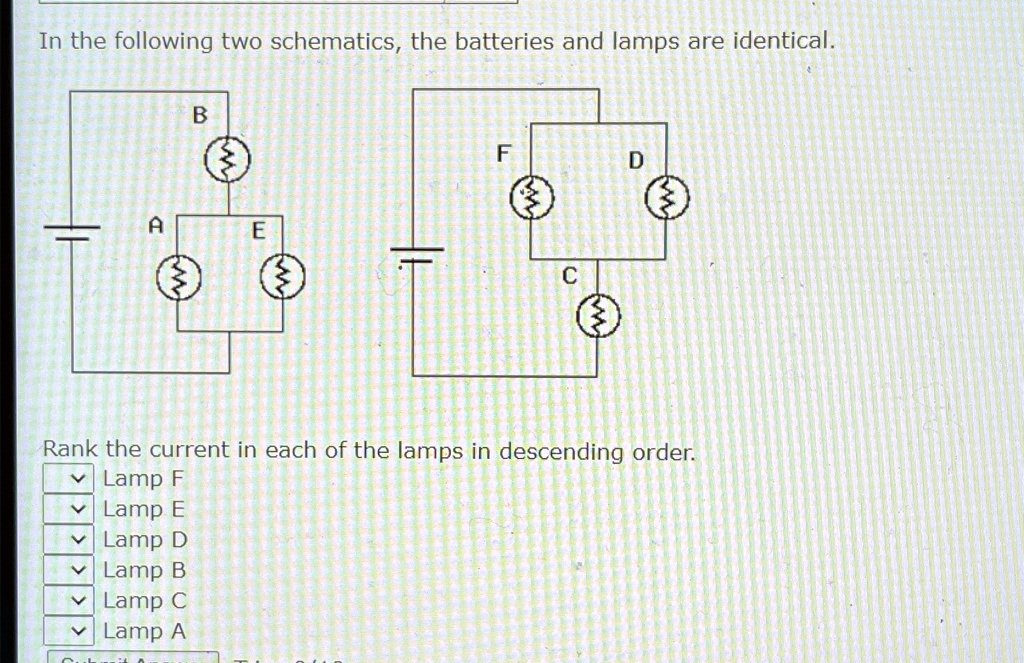

In the following two schematics, the batteries and lamps are identical. B A E F D C Rank the current in each of the lamps in descending order. Lamp F Lamp E Lamp D Lamp B Lamp C Lamp A

          In the following two schematics, the batteries and lamps are identical.
B
A
E
F
D
C
Rank the current in each of the lamps in descending order.
Lamp F
Lamp E
Lamp D
Lamp B
Lamp C
Lamp A

Added by Brian J.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Vishal Gupta

03/01/2023

Step 1

This is because the current in a series circuit is the same at all points. Step 2: Since the batteries and lamps are identical in both schematics, the current will be the same in each lamp in both schematics. Step 3: Therefore, the current in each lamp will be Show more…
