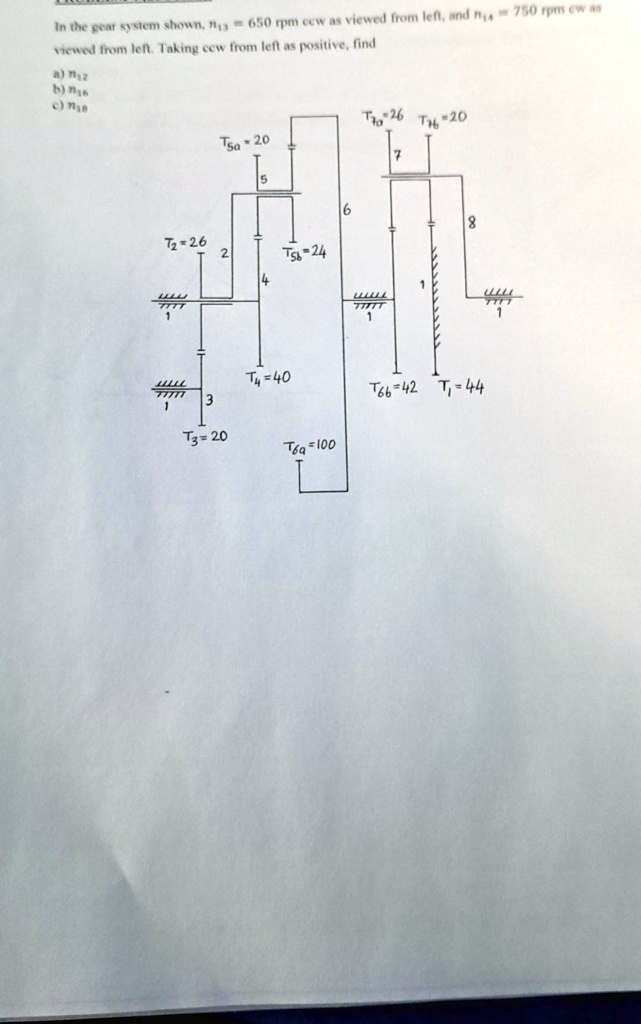

In the gear system shown, $n_{13} = 650$ rpm ccw as viewed from left, and $n_{14} = 750$ rpm cw as viewed from left. Taking ccw from left as positive, find a) $n_2$ b) $n_6$ c) $n_8$ $T_{10} = 26$ $T_{14} = 20$ $T_{5a} = 20$ 7 6 $T_2 = 26$ 2 $T_{5b} = 24$ 4 1 8 1 $T_4 = 40$ 3 $T_{6b} = 42$ $T_7 = 44$ 1 $T_3 = 20$ $T_{6a} = 100$
Added by Tina C.
Close
Step 1
However, I will attempt to provide a step-by-step solution based on the information given. It appears that we are dealing with a gear system with various gears labeled with T followed by a number, which likely represents the number of teeth on each gear. The Show more…
