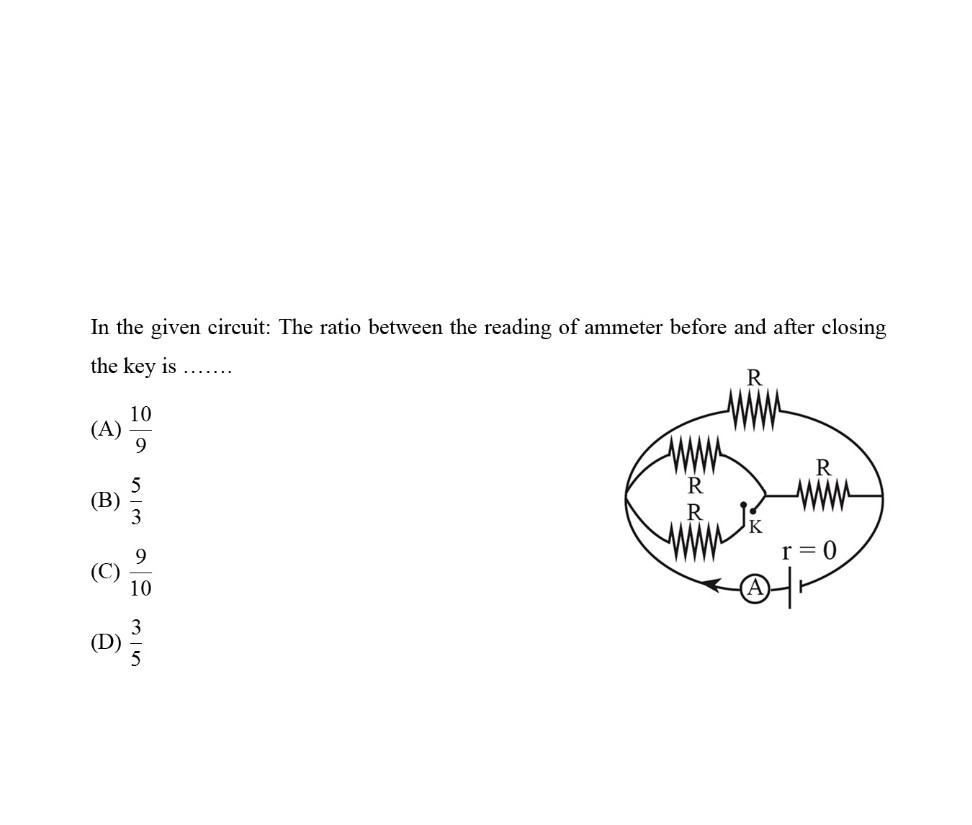

In the given circuit: The ratio between the reading of ammeter before and after closing the key is \( \qquad \) (A) \( \frac{10}{9} \) (B) \( \frac{5}{3} \) (C) \( \frac{9}{10} \) (D) \( \frac{3}{5} \)
Added by Joel W.
Close
Step 1
The resistors are in series, so the total resistance \( R_{\text{total, open}} = 3R \). Show more…
Show all steps
Your feedback will help us improve your experience
Surjit Tewari and 76 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The reading of the ammeter in the circuit in Fig, is ...... (A) $(3 / 5) \mathrm{A}$ (B) $(4 / 5) \mathrm{A}$ (C) $(6 / 5) \mathrm{A}$ (D) $(7 / 5) \mathrm{A}$
In the circuit shown in Fig. $6.53$, the reading of the an?mcter is (assume internal resistance of the battery be zero)a. $\frac{40}{29} \mathrm{~A}$ b $\frac{10}{9} \mathrm{~A}$ c $\frac{5}{3} \mathrm{~A}$ d $2 \mathrm{~A}$
In the circuit shown in fig, the reading of ammeter is.... (A) $1 \mathrm{~A}$ (B) $2 \mathrm{~A}$ (C) $3 \mathrm{~A}$ (D) $4 \mathrm{~A}$
