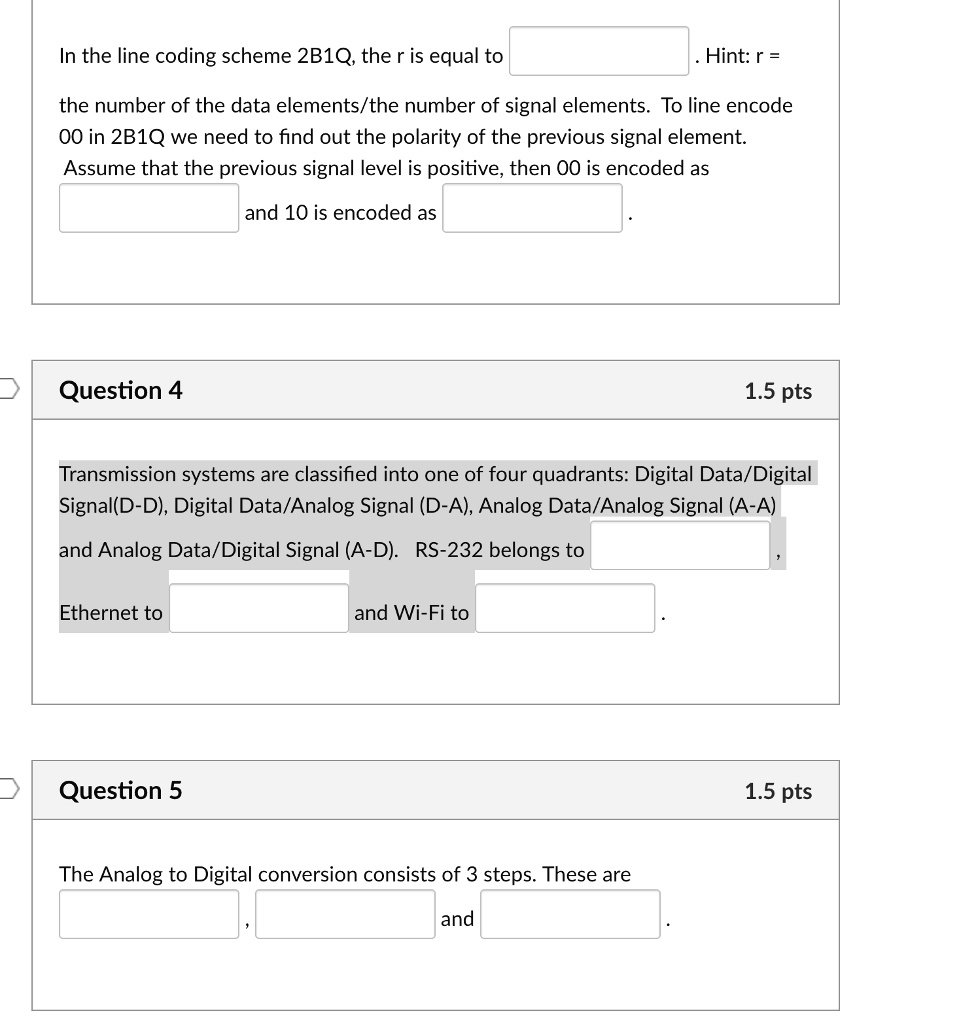

In the line coding scheme 2B1Q, the r is equal to
Hint: r =
the number of data elements/the number of signal elements. To line encode
00 in 2B1Q, we need to find out the polarity of the previous signal element.
Assume that the previous signal level is positive, then 00 is encoded as
and 10 is encoded as
Question 4
1.5 pts
Transmission systems are classified into one of four quadrants: Digital Data/Digital Signal (D-D), Digital Data/Analog Signal (D-A), Analog Data/Analog Signal (A-A), and Analog Data/Digital Signal (A-D). RS-232 belongs to
Ethernet to
and Wi-Fi to
Question 5
1.5 pts
The Analog to Digital conversion consists of 3 steps. These are
and
