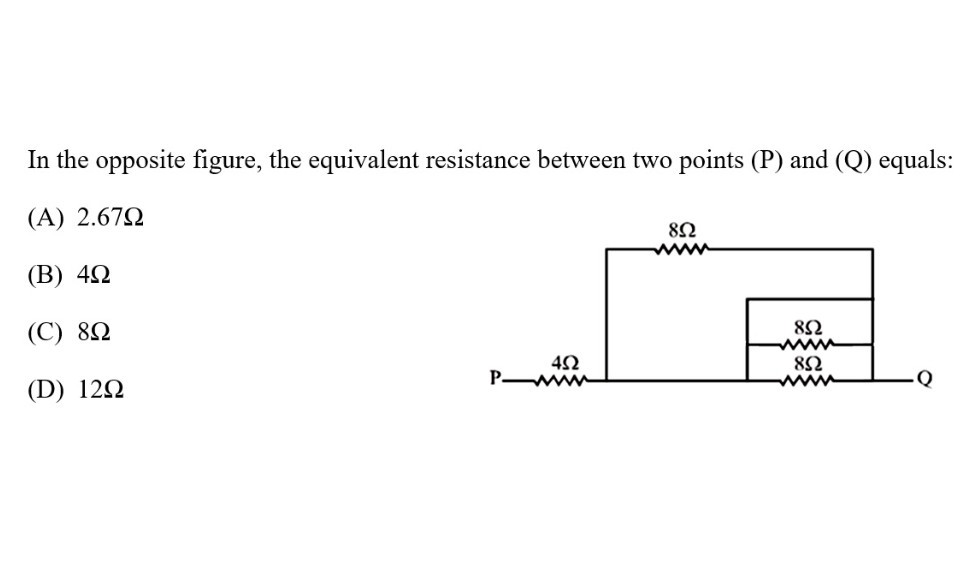

In the opposite figure, the equivalent resistance between two points \( (P) \) and \( (Q) \) equals: (A) \( 2.67 \Omega \) (B) \( 4 \Omega \) (C) \( 8 \Omega \) (D) \( 12 \Omega \)
Added by Tammy J.
Close
Step 1
The two 8 Ω resistors on the right side are in parallel. Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 73 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The equivalent resistance between points $A$ and $B$ is : : (a) $2 \Omega$ (b) $4 \Omega$ (c) $3 \Omega$ (d) $5 \Omega$

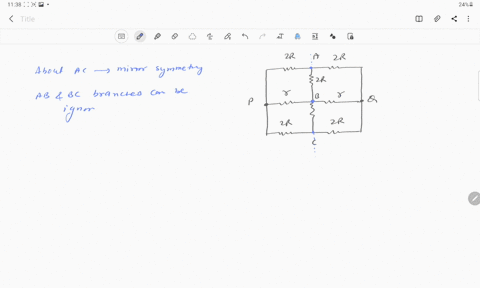

The effective resistance between points $P$ and $Q$ of the electrical circuit shown in the figure. (a) $\frac{2 R r}{R+r}$ (b) $\frac{8 R(R+r)}{(3 R+r)}$ (c) $2 R+4 r$ (d) $\frac{5 R}{2}+2 R$
Current Electricity
Round 2
Four resistances each of value $4 \Omega$, are connected as shown in figure. The equivalent resistance between points $A$ and $B$ is : (a) $2 \Omega$ (b) $3 \Omega$ (c) $4 \Omega$ (d) $16 \Omega$
