5. A series RLC circuit utilizes a 200 ? resistor, a 663 mH inductor, and a 26.5 ?F capacitor. The applied voltage has an amplitude of 50 V and a frequency of 60.0 Hz. Find a) The maximum current and its phase relative to the applied voltage. X_L = ?L = 2?fL ? X_L = 2?(60)(663x10?³) = 250 ? X_C = 1/?C = 1/(2?fC) ? X_C = 1/(2?(60)(26.5x10??)) ? X_C = 100 ? Z = ?R² + (X_L - X_C)² ? Z = ?200² + (250-100)² ? Z = 250 ? I_rms = V_rms/Z ? I_rms = 50/250 ? I_rms = 0.2 A, ? = tan?¹((X_L - X_C)/R) ? ? = 36.86° b) The maximum voltage across the resistor and its phase relative to the current V_max = I_max * R V_max = (0.2)(200) V_max = 40V c) The maximum voltage across the capacitor and its phase relative to the current. V_max = I_max * X_C V_max = (0.2)(100) V_max = 20V d) The maximum voltage across the inductor and its phase relative to the current. V_max = I_max * X_L V_max = (0.2)(250) V_max = 50V
Added by Ruben B.
Close
Step 1
First, we need to find the impedance of the RLC circuit. The impedance is given by the formula: $Z = R + j(X_L - X_C)$ where $R$ is the resistance, $X_L$ is the inductive reactance, and $X_C$ is the capacitive reactance. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 86 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

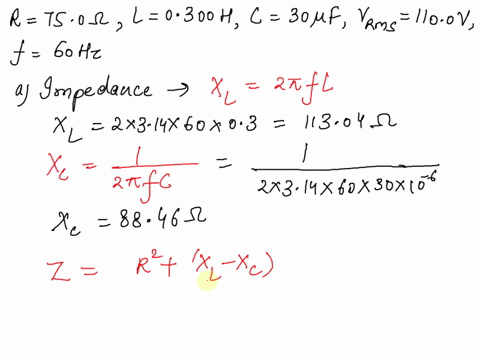

An RLC circuit is shown below. The elements have the following values: resistor (R = 75.0 Ω), inductor (L = 0.300 H), capacitor (C = 30.0 μF). The A.C. voltage source is VRMS = 110.0 volts, and f = 60 Hertz. a. What is the impedance (Z) of this circuit? b. What is the RMS current (IRMS)? c. What is the phase angle (φ) between the voltage and the current? d. Does the voltage lead or lag the current? (i.e. When the voltage leads the current it's at a maximum before the maximum of the current.) ONLY 1 ATTEMPT IS ALLOWED FOR THIS PART.
Madhur L.
7. An RLC circuit with inductance 160 mH, capacitance 200μF, and resistance 40Ω connected to an AC source with voltage amplitude 40 V and angular frequency 200 rad/s. Determine: a. The impedance of the circuit! b. Current on the circuit as a function of time and its phasor diagram! c. Power dissipated from the system! 8. An AC source with emf 150 V and angular frequency 100 rad/s is connected with 40Ω resistance, 80 mH inductance, and 50 μF capacitance as given in the picture below: a. Determine the voltage amplitude on the resistor, inductor and capacitor each! b. Potential between ab, bc, cd, ac, and bd! c. The current on the circuit as a function of time!
