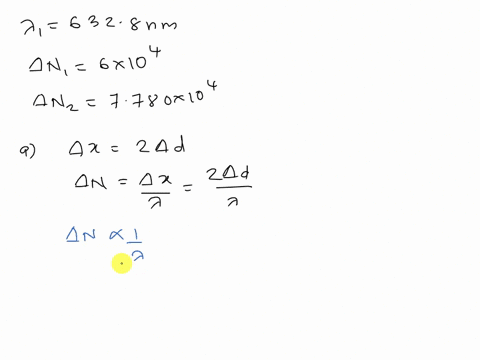

This question belongs to the wave optics and it has helium neon laser having wavelength of lambd

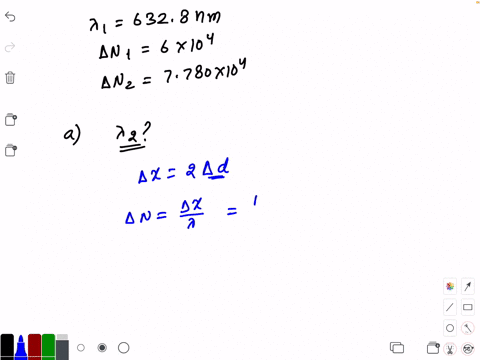

Hello everyone, let us do the following question. In this, a Michael's one, interferometer is us

All right, so this is the formula we use to find n, the small n, the refractive index. And so bi

Question

Interferometer can be used to measure displacement. Figure 1a shows the schematic layout of a Michelson interferometer. The laser source emits at a wavelength of 650 nm. Mirror MI is mounted on a fixed stage, while mirror M2 is mounted on a PZT transducer and can be moved back and forth along the light beam axis. It is found that when M2 is moved by a distance of D, the interference pattern displayed on the screen shifts 200 fringes in total. Calculate the value of D. When a thin piece of transparent material T is placed in front of M2 (as shown in Figure 1b), the interference pattern further shifts by 1000 fringes. Suppose the refractive index of T is 1.52, calculate its thickness. M1 (Fixed mirror) (b) M1 (Fixed mirror) Moving direction Laser source PZT Laser source PZT M2 (Movable mirror) M2 (Movable mirror) Screen Screen Figure 1

          Interferometer can be used to measure displacement. Figure 1a shows the schematic layout of a Michelson interferometer. The laser source emits at a wavelength of 650 nm. Mirror MI is mounted on a fixed stage, while mirror M2 is mounted on a PZT transducer and can be moved back and forth along the light beam axis. It is found that when M2 is moved by a distance of D, the interference pattern displayed on the screen shifts 200 fringes in total. Calculate the value of D. When a thin piece of transparent material T is placed in front of M2 (as shown in Figure 1b), the interference pattern further shifts by 1000 fringes. Suppose the refractive index of T is 1.52, calculate its thickness.

M1 (Fixed mirror)
(b)
M1 (Fixed mirror)
Moving direction
Laser source
PZT
Laser source
PZT
M2 (Movable mirror)
M2
(Movable mirror)
Screen
Screen

Figure 1
