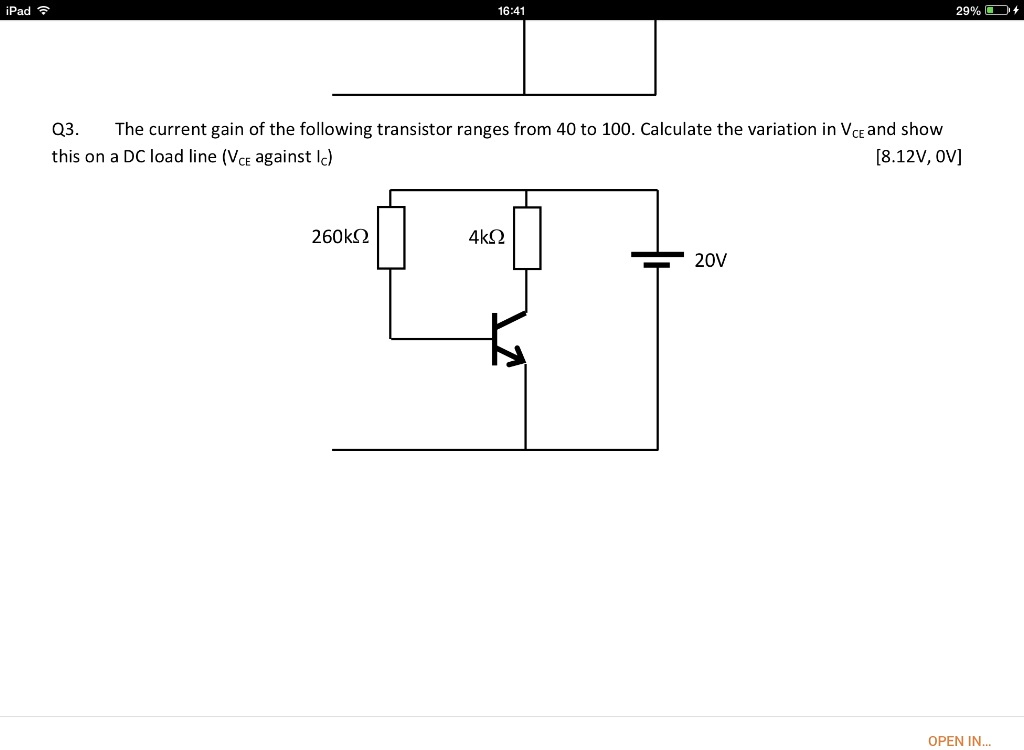

iPad 16:41 29% Q3. The current gain of the following transistor ranges from 40 to 100. Calculate the variation in Vce and show this on a DC load line (Vc against Ic) [8.12V, 0V] 260kΩ 4kΩ 20V OPENING...
Added by David M.
Close
Step 1
First, we need to calculate the variation in Vce. Vce is the voltage between the collector and emitter of the transistor. The variation in Vce can be calculated by subtracting the minimum value from the maximum value. Vce variation = Maximum Vce - Minimum Vce Show more…
Show all steps
Your feedback will help us improve your experience
Sahil Kumar and 84 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
(II) Suppose that the current gain of the transistor in Fig. 43 is $\beta=i_{C} / i_{B}=85 .$ If $R_{C}=4.3 \mathrm{k} \Omega$ , calculate the ac output voltage for an ac input current of 2.0$\mu \mathrm{A} .$

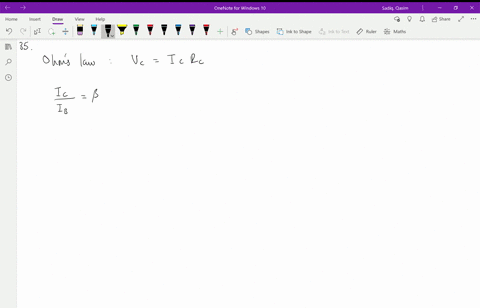

(II) Suppose that the current gain of the transistor in Fig. 29-41 is $\beta = i_C/i_B = 85$. If $R_C = 3.8 \mathrm{k}\Omega$, calculate the ac output voltage for an ac input current of 2.0 $\mu$A.
MOLECULES AND SOLIDS
Transistors: Bipolar and MOSFETs

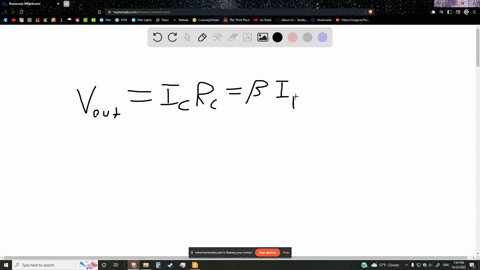

Suppose that the current gain of the transistor in Fig. $40-43$ is $\beta=i_{\mathrm{C}} / i_{\mathrm{B}}=85 .$ If $R_{\mathrm{C}}=4.3 \mathrm{k} \Omega,$ calculate the ac output voltage for an ac input current of $2.0 \mu \mathrm{A}$.
