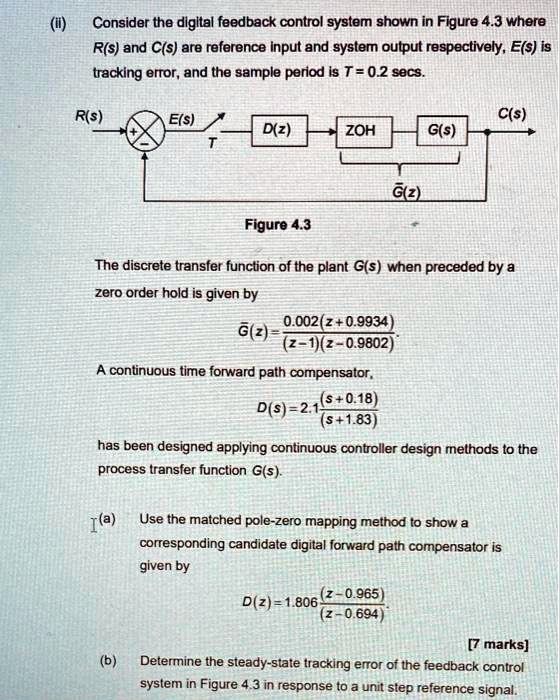

Consider the digital feedback control system shown in Figure 4.3 where R(s) and C(s) are reference input and system output respectively, E(s) is tracking error, and the sample period is T = 0.2 secs. [Diagram showing a feedback control loop with R(s), a comparator, E(s), a sampler T, D(z), ZOH, G(s), and output C(s), with G?(z) indicated below ZOH and G(s)] Figure 4.3 The discrete transfer function of the plant G(s) when preceded by a zero order hold is given by G?(z) = (0.002(z + 0.9934)) / ((z - 1)(z - 0.9802)) A continuous time forward path compensator, D(s) = 2.1((s + 0.18) / (s + 1.83)) has been designed applying continuous controller design methods to the process transfer function G(s). (a) Use the matched pole-zero mapping method to show a corresponding candidate digital forward path compensator is given by D(z) = 1.806((z - 0.965) / (z - 0.694)) [7 marks] (b) Determine the steady-state tracking error of the feedback control system in Figure 4.3 in response to a unit step reference signal.
Added by Brittany W.
Close
Step 1
(a) Show more…
Show all steps
