Midterm Exam Q1: Find the frequency of the system shown below, knowing that m= 20kg, l=4m, and k=100 N/m. Uniform rigid bar, mass m Q: Derive the expression for frequency of oscillation

          Midterm Exam
Q1: Find the frequency of the system shown below, knowing that m= 20kg, l=4m, and
k=100 N/m.
Uniform rigid
bar, mass m
Q: Derive the expression for frequency of oscillation
Midterm Exam Q1: Find the frequency of the system shown below, knowing that m= 20kg, l=4m, and k=100 N/m. Uniform rigid bar, mass m Q: Derive the expression for frequency of oscillation

Added by Stephanie C.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
k=100N/m. Q1:Find the frequency of the system shown below,knowing that ms 20ke.mand bar.mass m Uniform rigid B 3 Q:Derive the expression for
Close icon
Play audio
Feedback
Powered by NumerAI
Kathleen Carty David Collins
Ivan Kochetkov verified

Lainey Roebuck and 96 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
find-the-equation-of-motion-of-the-uniform-rigid-bar-o-a-of-length-l-and-mass-m-shown-in-fig-2104-al

Find the equation of motion of the uniform rigid bar $O A$ of length $l$ and mass $m$ shown in Fig. $2.104 .$ Also find its natural frequency.

Mechanical Vibrations in SI Units

assume-that-the-bar-is-rigid-with-a-mass-moment-of-inertia-jo6-kg-m2and-the-mass-m110-kguse-the-following-values-for-the-springk20000-nmk2-25000nmk30000nmkt3500nmradl4m-0-m1-l2-k3-jo-k2-find-93261

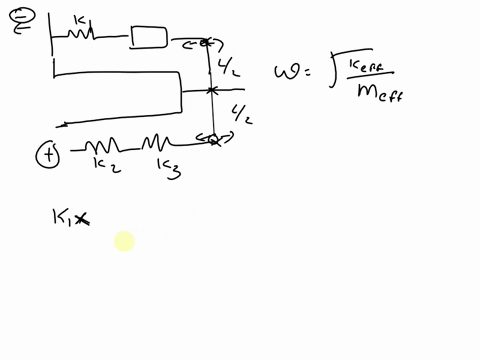

Assume that the bar is rigid with a mass moment of inertia Jo = 6 kg m^2 and the mass m1 = 10 kg. Use the following values for the springs: k1 = 20000 N/m, k2 = 25000 N/m, k3 = 30000 N/m. Also, the torque constant kt = 3500 Nm/rad and the length of the bar L = 4m. Find the natural frequency of the system.
