Kennesaw State University EE 2302 Fall 2017 Problem 2. The balanced three-phase system is characterized by a positive phase sequence and a line voltage of 100 V. Calculate the line current and per-phase load impedance if $R_w = 0 \Omega$ and the load draws 1 kW at a PF of 0.85 lagging. (a) Line current (15 points) (b) Per-phase load impedance (15 points)
Added by Jose J.
Close
Step 1
The load draws I kW at a power factor (PF) of 0.85 lagging. This means that the load has a reactive power component, which is causing it to lag behind the voltage waveform. Show more…
Show all steps
Your feedback will help us improve your experience
Dwijendra Rao and 87 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A 170 kV, 3-phase electric source delivers 200 MVA to a balanced load, which has a power factor of 90% lagging. What is the line current?
Adi S.

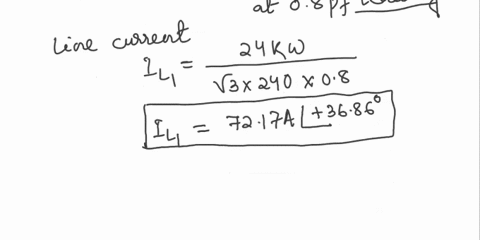

A 240V, 3-phase, 3-wire system has two balanced 3-phase loads. Load I, delta connected, takes 24 kW at 0.8 power factor leading, and load 2, wye-connected, takes 20 kVA at 0.766 power factor lagging. Find the line current in amperes. A) 110.4 B) 92.8 C) 95.4 D) 88.6
