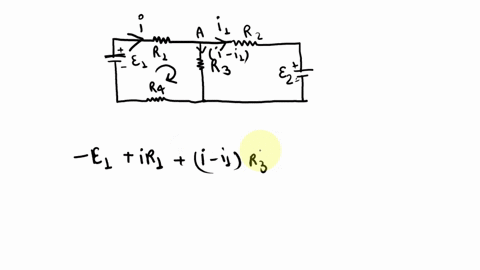

Hello students, we are given the following figure.
00:04
Using this figure we need to find out the sum of the voltages in the loops that are being asked.
00:15
First, we need to consider the loop a, b, c, d, f, g, h, a, that is the entire outer loop.
00:26
Thus, in the loop, a, b, c, d, c d, efgha using the kirchof's circuital law.
00:38
We will have, starting from a, the voltage will be the current i1 multiplied by resistance r1.
00:46
Then moving on after b, the negative terminal of e1 is facing first.
00:52
So we will write minus e1.
00:55
Then we have the internal distance r1 of e1.
00:58
So the voltage will be plus i1 into r1.
01:04
Then moving on from d to e there is no component.
01:08
After e we have the resistance r3.
01:10
However, the current i3 is flowing in the opposite direction to our clockwise direction of the loop.
01:17
As we will put here a negative sign, we will have minus i3 into the resistance r3.
01:23
Moving on from f we have the internal resistance r2 and again the i3 is an opposite...
