Question

Knowing the buoyant force on an object, and its physical size we can determine the density of the surrounding fluid. Similarly, if we know the density of the fluid in which we immerse an object, and the volume of fluid it displaces, we can determine the weight of the object. It is also possible to use Archimedes' principle to determine the volume of irregular shapes that would otherwise be difficult to measure, by simply knowing the density of the fluid and the weight of the object. QUESTION 1: Consider an object of mass $m$, volume $V$, partially immersed at a volume $V_{sub}$ in a liquid of density $ ho$. The object is held in place by a tension $T$. Draw the free body diagram for the object. Label all forces clearly. QUESTION 2: Write down an equation for the net force in terms of $m$, $ ho$, $V_{sub}$, $T$ and gravity $g$. QUESTION 3: If you plot a graph of $T$ vs $V_{sub}$, write down the equations for the slope and intercept of this graph. (NO NUMBERS) QUESTION 4: Sketch what a plot of $T$ vs $V_{sub}$ would look like.

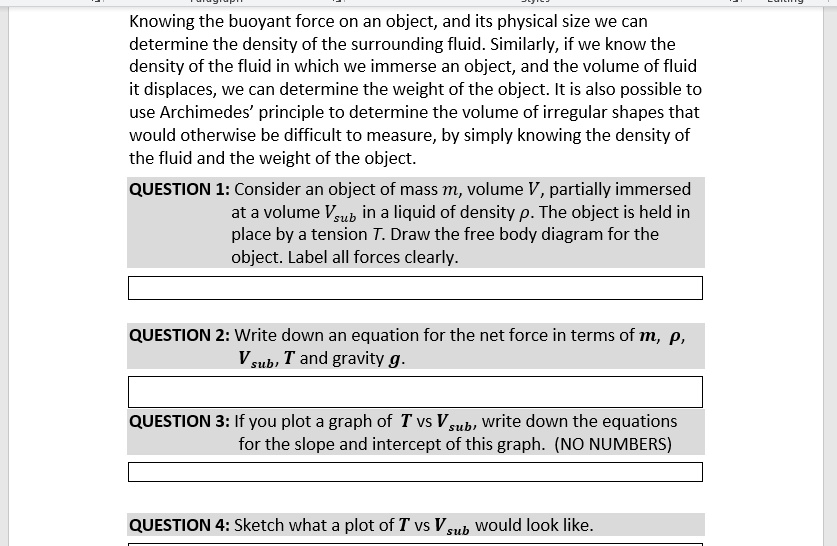

          Knowing the buoyant force on an object, and its physical size we can
determine the density of the surrounding fluid. Similarly, if we know the
density of the fluid in which we immerse an object, and the volume of fluid
it displaces, we can determine the weight of the object. It is also possible to
use Archimedes' principle to determine the volume of irregular shapes that
would otherwise be difficult to measure, by simply knowing the density of
the fluid and the weight of the object.
QUESTION 1: Consider an object of mass $m$, volume $V$, partially immersed
at a volume $V_{sub}$ in a liquid of density $
ho$. The object is held in
place by a tension $T$. Draw the free body diagram for the
object. Label all forces clearly.
QUESTION 2: Write down an equation for the net force in terms of $m$, $
ho$,
$V_{sub}$, $T$ and gravity $g$.
QUESTION 3: If you plot a graph of $T$ vs $V_{sub}$, write down the equations
for the slope and intercept of this graph. (NO NUMBERS)
QUESTION 4: Sketch what a plot of $T$ vs $V_{sub}$ would look like.

Show more…

Knowing the buoyant force on an object, and its physical size we can
determine the density of the surrounding fluid. Similarly, if we know the
density of the fluid in which we immerse an object, and the volume of fluid
it displaces, we can determine the weight of the object. It is also possible to
use Archimedes' principle to determine the volume of irregular shapes that
would otherwise be difficult to measure, by simply knowing the density of
the fluid and the weight of the object.
QUESTION 1: Consider an object of mass m, volume V, partially immersed
at a volume Vsub in a liquid of density ho. The object is held in
place by a tension T. Draw the free body diagram for the
object. Label all forces clearly.
QUESTION 2: Write down an equation for the net force in terms of m, ho,
Vsub, T and gravity g.
QUESTION 3: If you plot a graph of T vs Vsub, write down the equations
for the slope and intercept of this graph. (NO NUMBERS)
QUESTION 4: Sketch what a plot of T vs Vsub would look like.

Added by -Ngel O.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Ethan Deweese

06/21/2022

Step 1

Label all forces clearly. Show more…

Show all steps

lock

Thanks for your feedback!

Knowing the buoyant force on an object, and its physical size we can determine the density of the surrounding fluid. Similarly, if we know the density of the fluid in which we immerse an object, and the volume of fluid it displaces, we can determine the weight of the object. It is also possible to use Archimedes' principle to determine the volume of irregular shapes that would otherwise be difficult to measure, by simply knowing the density of the fluid and the weight of the object. QUESTION 1: Consider an object of mass m, volume V, partially immersed at a volume Vsub in a liquid of density ρ. The object is held in place by a tension T. Draw the free body diagram for the object. Label all forces clearly. QUESTION 2: Write down an equation for the net force in terms of m, ρ, Vsub, T and gravity g. QUESTION 3: If you plot a graph of T vs Vsub, write down the equations for the slope and intercept of this graph. (NO NUMBERS) QUESTION 4: Sketch what a plot of T vs Vsub would look like.

Play audio

Feedback

Powered by NumerAI

Ethan Deweese and 59 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Recommended Videos

Recommended Textbooks

Transcript

00:01 So in this problem, we want to find some expressions for describing this situation.

00:05 And we have a block supported by some tension.

00:10 And it is partially submerged with a volume submerged of v sub, a total mass of the volume, a mass of m volume of v.

00:20 We have this water or any liquid that is being subversion, which density row.

00:27 So firstly, we need to draw the free body diagram.

00:32 So represent the object as a point.

00:36 Firstly, we have its weight, which we know to be m times g.

00:43 We have the tension that is applied upwards.

00:47 And we also have the buoyant force, which we'll call b, applied upwards.

00:55 So that is the first part, and we'll use this to continue developing the problem.

01:03 So in part two, we want to find an equation.

01:09 We want to find an equation for the net forces.

01:13 This body is at equilibrium.

01:17 As it's saying, it's moving.

01:20 We'll say that it's equilibrium because it's stationary at this current position, although it's moved in between trials.

01:26 So because it's at equilibrium, the sum of forces is equal to zero.

01:32 We can pick that, for example, this is the y direction, positive and so it becomes the sum of forces in the y is equal to zero so we have buoyancy and tension in the positive direction and the weight m g in the negative direction is equal to zero the buoyancy by archimedes principle is equal to the density of the fluid the volume displaced the sub and the gravity xcelerous unit to gravity g and so if we put that in, we'll v sub g plus t minus m g is equal to zero.

02:19 And so that's the force at any point on this block.

02:25 In part three, we want to find the graph of t versus v sub.

02:34 Where we want to find the equation of it.

02:37 So this is given as y versus x.

02:41 And so you would see the t and v.

02:45 Sub...
