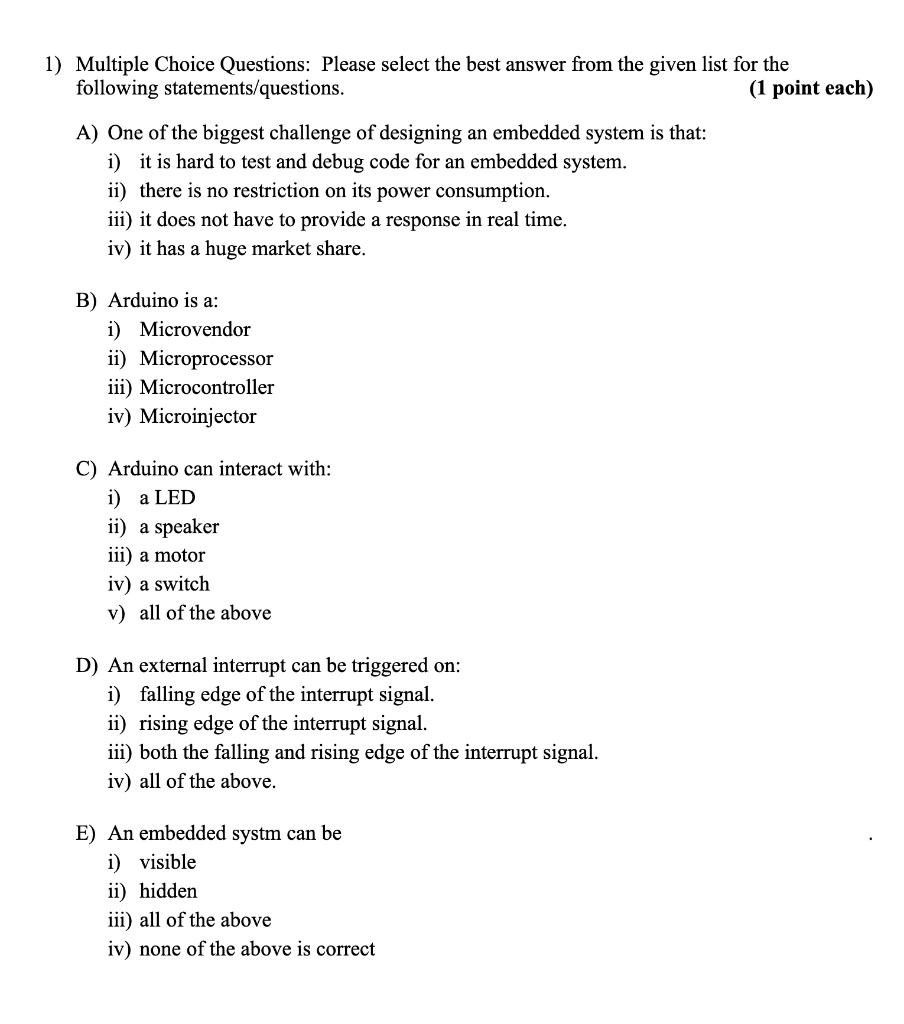

1) Multiple Choice Questions: Please select the best answer from the given list for the following statements/questions. (1 point each) A) One of the biggest challenge of designing an embedded system is that: i) it is hard to test and debug code for an embedded system. ii) there is no restriction on its power consumption. iii) it does not have to provide a response in real time. iv) it has a huge market share. B) Arduino is a: i) Microvendor ii) Microprocessor iii) Microcontroller iv) Microinjector C) Arduino can interact with: i) a LED ii) a speaker iii) a motor iv) a switch v) all of the above D) An external interrupt can be triggered on: i) falling edge of the interrupt signal. ii) rising edge of the interrupt signal. iii) both the falling and rising edge of the interrupt signal. iv) all of the above. E) An embedded system can be i) visible ii) hidden iii) all of the above iv) none of the above is correct
Added by Alex M.
Close
Step 1
This is correct. Embedded systems often have limited resources and are difficult to access for testing and debugging purposes. B) Arduino is a: i) Microcontroller. This is correct. Arduino is a popular platform for building embedded systems and it is based on Show more…
Show all steps
