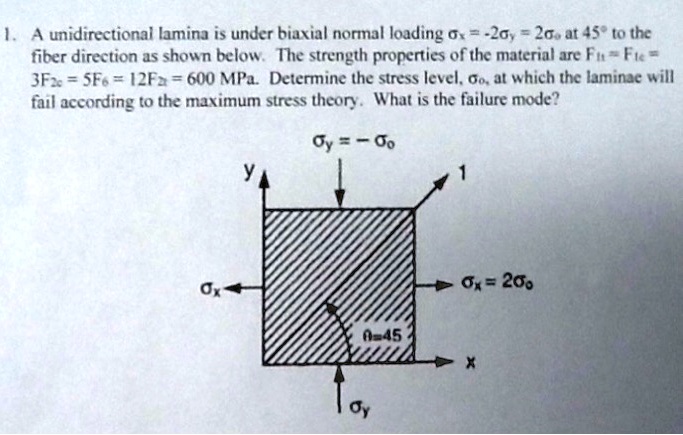

1. A unidirectional lamina is under biaxial normal loading ?x = -2?y = 2?o at 45° to the fiber direction as shown below. The strength properties of the material are F1t = F1c = 3F2c = 5F6 = 12F2t = 600 MPa. Determine the stress level, ?o, at which the laminae will fail according to the maximum stress theory. What is the failure mode?
