Question

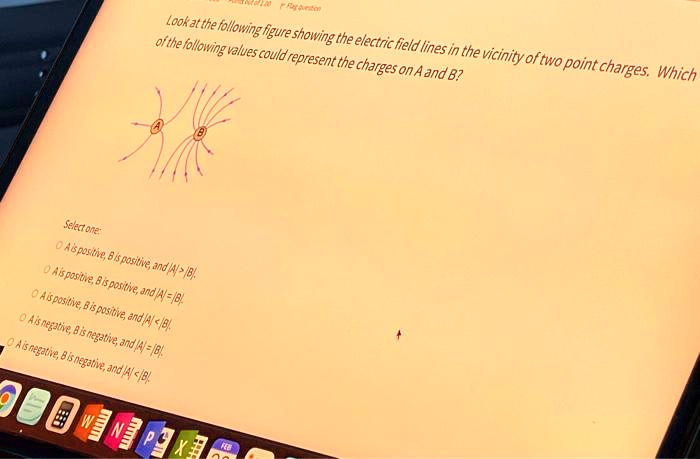

Look at the following figure showing the electric field lines in the vicinity of two point charges. Which of the following values could represent the charges on A and B? Select one: A is positive, B is positive, and |A| > |B|. A is positive, B is positive, and |A| = |B|. A is positive, B is positive, and |A| < |B|. A is negative, B is negative, and |A| = |B|. A is negative, B is negative, and |A| < |B|.

          Look at the following figure showing the electric field lines in the vicinity of two point charges. Which
of the following values could represent the charges on A and B?
Select one:
A is positive, B is positive, and |A| > |B|.
A is positive, B is positive, and |A| = |B|.
A is positive, B is positive, and |A| < |B|.
A is negative, B is negative, and |A| = |B|.
A is negative, B is negative, and |A| < |B|.

Look at the following figure showing the electric field lines in the vicinity of two point charges. Which
of the following values could represent the charges on A and B?
Select one:
A is positive, B is positive, and |A| > |B|.
A is positive, B is positive, and |A| = |B|.
A is positive, B is positive, and |A| < |B|.
A is negative, B is negative, and |A| = |B|.
A is negative, B is negative, and |A| < |B|.

Added by Tom-S S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

06/19/2022

Step 1

Since the electric field lines are going outwards from A, charge A must be positive. Since the electric field lines are going inwards towards B, charge B must be negative. ** Show more…

Show all steps

Thanks for your feedback!

Look at the following figure showing the electric field lines in the vicinity of two point charges. Which of the following values could represent the charges on A and B?
