Question 2: (3 Marks Total) A] A transmitted signal travels a distance of 72 m during a time interval. If this distance is equal to 8 periods (8T): a) Calculate the wavelength for this signal. (1 Mark) b) Calculate the period "T" for this signal. (1 Mark) B] Calculate the voltage gain for the amplifier system shown in Figure (2), where an input signal Vin = 7 mV is applied at the input and an output voltage Vo = 28 mV is detected at the output of the amplifier. Also express this gain in dB. (1 Mark) Figure (2) Vin = 3 mV -> [Amplifier] -> Vout = 60 mV

          Question 2:
(3 Marks Total)

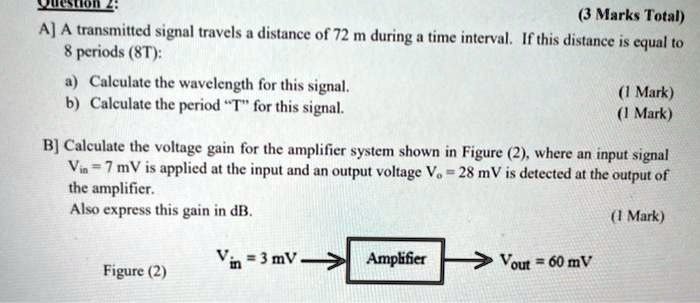

A] A transmitted signal travels a distance of 72 m during a time interval. If this distance is equal to 8 periods (8T):
a) Calculate the wavelength for this signal. (1 Mark)
b) Calculate the period "T" for this signal. (1 Mark)

B] Calculate the voltage gain for the amplifier system shown in Figure (2), where an input signal Vin = 7 mV is applied at the input and an output voltage Vo = 28 mV is detected at the output of the amplifier.
Also express this gain in dB. (1 Mark)

Figure (2)
Vin = 3 mV -> [Amplifier] -> Vout = 60 mV

Show more…

Question 2:
(3 Marks Total)
A] A transmitted signal travels a distance of 72 m during a time interval. If this distance is equal to 8 periods (8T):
a) Calculate the wavelength for this signal. (1 Mark)
b) Calculate the period "T" for this signal. (1 Mark)

B] Calculate the voltage gain for the amplifier system shown in Figure (2), where an input signal Vin = 7 mV is applied at the input and an output voltage Vo = 28 mV is detected at the output of the amplifier.
Also express this gain in dB. (1 Mark)

Figure (2)
Vin = 3 mV -> [Amplifier] -> Vout = 60 mV

Added by Jessica E.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supreeta N

09/06/2023

Step 1

a) To calculate the wavelength, we can use the formula: wavelength = distance / number of periods Given that the distance is 72 m and the number of periods is 8, we can substitute these values into the formula: wavelength = 72 m / 8 = 9 m Show more…

Show all steps

lock

Thanks for your feedback!

A) A transmitted signal travels a distance of 72 m during a time interval. If this distance is equal to 8 periods (8T), a) Calculate the wavelength for this signal. b) Calculate the period "T" for this signal. B) Calculate the voltage gain for the amplifier system shown in Figure 2, where an input signal Vin = 7mV is applied at the input and an output voltage Vout = 28 mV is detected at the output of the amplifier. Also, express this gain in dB. Vin = 3mV Amplifier Vout = 60mV Figure 2
