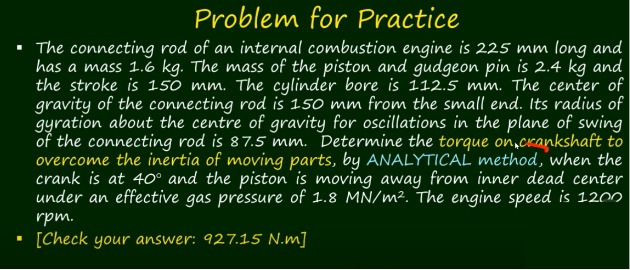

Problem for Practice - The connecting rod of an internal combustion engine is \( 225 \mathrm{~mm} \) long and has a mass \( 1.6 \mathrm{~kg} \). The mass of the piston and gudgeon pin is \( 2.4 \mathrm{~kg} \) and the stroke is \( 150 \mathrm{~mm} \). The cylinder bore is \( 112.5 \mathrm{~mm} \). The center of gravity of the connecting rod is \( 150 \mathrm{~mm} \) from the small end. Its radius of gyration about the centre of gravity for oscillations in the plane of swing of the connecting rod is \( 87.5 \mathrm{~mm} \). Determine the torque on acankshaft to overcome the inertia of moving parts, by ANALYTICAL method, when the crank is at \( 40^{\circ} \) and the piston is moving away from inner dead center under an effective gas pressure of \( 1.8 \mathrm{MN} / \mathrm{m}^{2} \). The engine speed is 1200 rpm. - [Check your answer: 927.15 N.m]
Added by Umut A.
Close
Step 1
First, we need to find the angular velocity (ω) of the crankshaft. We are given the engine speed as 1200 rpm. To convert it to radians per second, we can use the following formula: ω = (2 * π * n) / 60 where n is the engine speed in rpm. ω = (2 * π * Show more…
Show all steps
