Material: Nickel Radiation: Cu Κα λκαι = 0.154056 nm sin² 0 Peak # 20 (°) sin² 0 sinh²+k²+12 hkl a (nm) sin² omin sin omin 1 44.53 0.143558 1 3 3 11/ 0.352124 2 51.89 0.191413 1.333349 4.000048 4 200 0.352121 3 76.45 0.382853 2.666882 8.000646 8 220 0.352109 4 93.01 0.526255 3.665793 10.99738 11 311 0.352165 5 98.51 0.573991 3.998312 11.99494 12 222 0.352198 6 122.12 0.765847 5.334746 16.00424 16 400 0.352099
Added by Jennifer M.
Close
Step 1
Step 1: The formula for calculating the lattice parameter (a) is: $$a = \frac{n\lambda}{2sin\theta}$$ where: * n is the order of the diffraction peak * λ is the wavelength of the X-ray radiation * θ is the Bragg angle Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 71 other Intro Stats / AP Statistics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

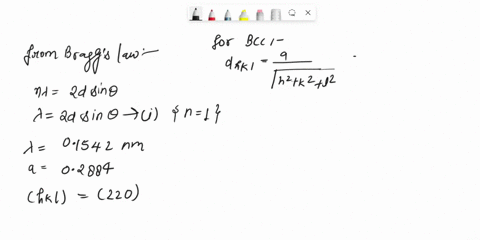

HW1: If an X-ray diffraction pattern for a powder sample of Cr (crystal system: body-centered cubic and lattice parameter a=0.3 nm) is measured using a conventional diffractometer, we will obtain six diffraction peaks corresponding to (110), (200), (211), (220), (310), and (222) planes. Compute the Lorentz-polarization factor using Cu-K radiation, Lambda-0.1545 nm. Hint: make a table for indexing pattern analysis.
Adi S.
For which set of crystallographic planes will a firstorder diffraction peak occur at a diffraction angle of $44.53^{\circ}$ for FCC nickel (Ni) when monochromatic radiation having a wavelength of $0.1542 \mathrm{~nm}$ is used?
Figure shows the first five peaks of the x-ray diffraction pattern for tungsten, which has a BCC crystal structure; monochromatic x-radiation having a wavelength of 0.1542 nm was used. (a) Index (i.e., give h, k, and l indices) for each of these peaks. (b) Determine the interplanar spacing for each of the peaks. (c) For each peak, determine the atomic radius for W. 0.0 20.0 40.0 60.0 80.0 100.0 Diffraction angle 2̐
