Question

maximum shear stress due to V. The parameters are a = 5 in, b = 15 in, c = 0.775 in, h = 2 in, $F_1$ = 3200 lbf, and $F_2$ = 1000 lbf. The moment of inertia is in$^4$. The maximum tensile bending stress due to M is psi. The maximum shear stress due to V is psi.

          maximum shear stress due to V. The parameters are a = 5 in, b = 15 in, c = 0.775 in, h = 2 in, $F_1$ = 3200 lbf, and $F_2$ = 1000 lbf.
The moment of inertia is  in$^4$.
The maximum tensile bending stress due to M is  psi.
The maximum shear stress due to V is  psi.
Show more…
maximum shear stress due to V. The parameters are a = 5 in, b = 15 in, c = 0.775 in, h = 2 in, F1 = 3200 lbf, and F2 = 1000 lbf. The moment of inertia is in^4. The maximum tensile bending stress due to M is psi. The maximum shear stress due to V is psi.

Added by David M.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
Maximum shear stress due to V. The parameters are a = 5 in, b = 15 in, c = 0.775 in, h = 2 in, F1 = 3200 lbf, and F2 = 1000 lbf. The moment of inertia is in^4. The maximum tensile bending stress due to M is psi. The maximum shear stress due to V is psi. Maximum shear stress due to V. The parameters are a = 5 in, b = 15 in, c = 0.775 in, h = 2 in, F1 = 3200 lbf, and F2 = 1000 lbf. The moment of inertia is in^4. The maximum tensile bending stress due to M is psi. The maximum shear stress due to V is psi.
Close icon
Play audio
Feedback
Powered by NumerAI
Ivan Kochetkov David Collins
Jennifer Stoner verified

Madhur L and 85 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
for-the-beam-illustrated-in-the-figure-find-the-locations-and-magnitudes-of-the-maximum-tensile-bending-stress-due-to-m-and-the-maximum-shear-stress-due-to-v-parameters-are-a-270-mm-b-145-mm-72396

For the beam illustrated in the figure, find the locations and magnitudes of the maximum tensile bending stress due to M and the maximum shear stress due to V. Parameters are a = 270 mm, b = 145 mm, c = 18 mm, h = 38 mm, and F = 4150 N. The moment of inertia is 0.89 x 10^5 mm^4. The maximum tensile bending stress due to M is 83.6 MPa. The maximum shear stress due to V is 5.9 MPa.

Madhur L.
for-the-beam-illustrated-in-the-figure-finc-the-ocations-and-magnitudes-of-the-maximum-tensile-bending-stress-due-to-mand-tne-maximum-shear-stress-dueto-v-parameters-re-290-mm-b-135-mm-c2-19-41886

For the beam illustrated in the figure, find the locations and magnitudes of the maximum tensile bending stress due to M and the maximum shear stress due to V. Parameters are a = 290 mm, b = 135 mm, c = 19 mm, h = 43 mm, and F = 4450 N. The moment of inertia is Ă—105 mm4. The maximum tensile bending stress due to M is MPa. The maximum shear stress due to V is MPa.

Adi S.
consider-the-rectangular-cross-sectional-area-shown-in-the-figure-below-if-the-bending-stress-at-point-p-which-is-bjcm-away-from-the-neutral-axis-is-889-mpa-1ox10-8-m-knowing-that-b-98-cm-an-69863

Consider the rectangular cross-sectional area shown in the figure below. If the bending stress at point P, which is b cm away from the neutral axis, is 88.9 MPa, and the moment of inertia of the entire cross-sectional area is I, then the maximum bending stress on the cross-sectional area is: a) 266.7 MPa b) 1334 MPa c) 177.8 MPa d) 222.2 MPa

Madhur L.
*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,702 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,123 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,381 solutions
*

Transcript

-

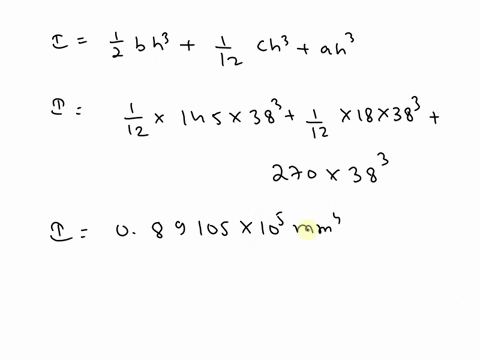

00:01 Hi students, here in the question let us first calculate the moment of inertia that is i equals to 1 upon 12 b h cube plus 1 upon 12 c h cube plus a h cube.
00:16 Putting in all the values we have i equals to 1 by 12 into 1 by 35 into 38 cube plus 1 by 12 into 18 into 38 cube plus 270 into 38 cube.
00:36 It gives us the value of i as 0 .8905 into 10 to the power 5 millimeter to the power.
00:47 Now we calculate the maximum tensile strength.
00:51 Maximum tensile strength that is sigma equals to m upon gamma into i.
01:02 Putting up the values we have sigma equals to 4150 into 38 upon 0 .89105 into 10 to the power 5 which gives us the value of sigma as 83 .6 mega pascal...
