Question

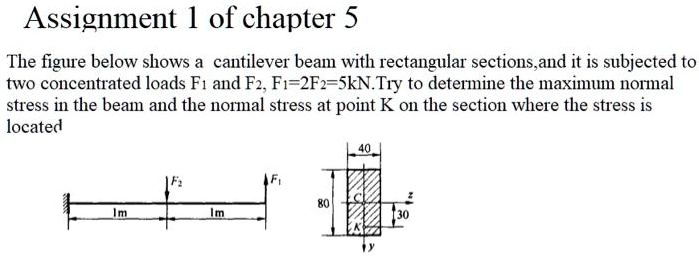

Assignment 1 of chapter 5 The figure below shows a cantilever beam with rectangular sections, and it is subjected to two concentrated loads F1 and F2, F1=2F2=5kN. Try to determine the maximum normal stress in the beam and the normal stress at point K on the section where the stress is located

          Assignment 1 of chapter 5
The figure below shows a cantilever beam with rectangular sections, and it is subjected to
two concentrated loads F1 and F2, F1=2F2=5kN. Try to determine the maximum normal
stress in the beam and the normal stress at point K on the section where the stress is
located

Assignment 1 of chapter 5
The figure below shows a cantilever beam with rectangular sections, and it is subjected to
two concentrated loads F1 and F2, F1=2F2=5kN. Try to determine the maximum normal
stress in the beam and the normal stress at point K on the section where the stress is
located

Added by Seth B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Thanks for your feedback!

Mechanics of Materials Assignment 1 of Chapter 5 The figure below shows a cantilever beam with rectangular sections, and it is subjected to two concentrated loads F1 and F2, where Fi = 2F2 - 5 kN. Try to determine the maximum normal stress in the beam and the normal stress at point K on the section where the stress is located. F2 Im Im
