Question

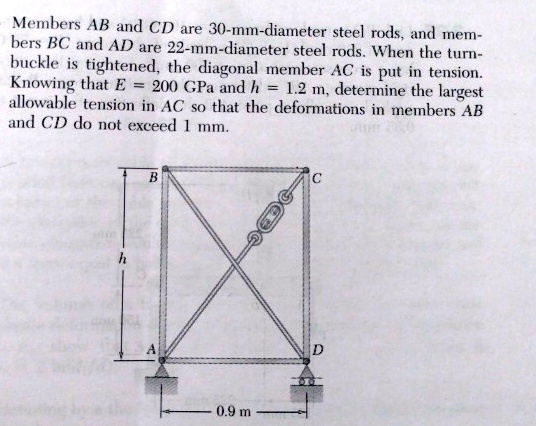

Members AB and CD are 30-mm-diameter steel rods, and members BC and AD are 22-mm-diameter steel rods. When the turnbuckle is tightened, the diagonal member AC is put in tension. Knowing that $E = 200 \, \text{GPa}$ and $h = 1.2 \, \text{m}$, determine the largest allowable tension in AC so that the deformations in members AB and CD do not exceed 1 mm.

Name: members ab and cd are 30 mm diameter steel rods and members bc and ad are 22 mm diameter steel rods when the turnbuckle is tightened the diagonal member ac is put in tension knowing that e 2 45224
Uploaded: 2023-06-17T20:29:53-08:00
Duration: 1 min 41 s
Channel: Adi S
Description: members ab and cd are 30 mm diameter steel rods and members bc and ad are 22 mm diameter steel rods when the turnbuckle is tightened the diagonal member ac is put in tension knowing that e 2 45224

          Members AB and CD are 30-mm-diameter steel rods, and members BC and AD are 22-mm-diameter steel rods. When the turnbuckle is tightened, the diagonal member AC is put in tension. Knowing that $E = 200 \, \text{GPa}$ and $h = 1.2 \, \text{m}$, determine the largest allowable tension in AC so that the deformations in members AB and CD do not exceed 1 mm.

members ab and cd are 30 mm diameter steel rods and members bc and ad are 22 mm diameter steel rods when the turnbuckle is tightened the diagonal member ac is put in tension knowing that e 2 45224

Added by Russell M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

06/17/2023

Step 1

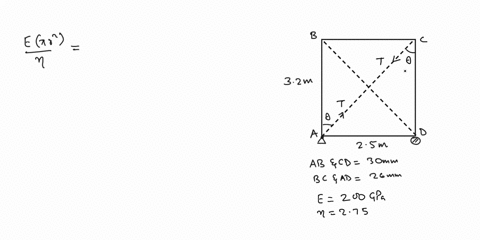

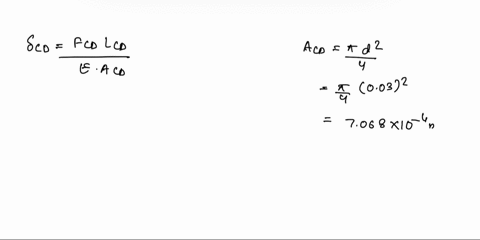

$d_{AB} = d_{CD} = 30 \, \text{mm} = 0.03 \, \text{m}$ $A_{AB} = A_{CD} = \frac{\pi}{4} d_{AB}^2 = \frac{\pi}{4} (0.03)^2 = 7.0686 \times 10^{-4} \, \text{m}^2$ Let $A_{BC}$ and $A_{AD}$ be the cross-sectional areas of members BC and AD, respectively. $d_{BC} = Show more…
