Multiple Choice. Resistors R1-8ohms, R2-4ohms, R3-6ohms, R4-2ohms are connected in series to a voltage source. Which resistor will dissipate the most power? A) R3 B) R1 C) R2 D) R4
Added by Robert M.
Step 1
The power dissipated in a resistor can be calculated using the formula P=I^2R, where I is the current and R is the resistance. Since the current is the same for all resistors, the resistor with the highest resistance will dissipate the most power. Show more…
Show all steps
Your feedback will help us improve your experience
Nishant Kumar and 95 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Multiple Choice. if a series circuit is I=5ma, R1= 2kohms, R2= 47kohms, R3= 10kohms, R4= 200 ohms, the voltage across R4 would be? A) 10V B) 235V C) 1V D) 50V
Supratim P.
Resistors R1 > R2 > R3 are connected in parallel in a circuit. A. The largest current passes through R1. B. Resistor R3 dissipates the most power. C. The same current passes through all the resistors. D. Resistor R1 dissipates the most power. E. All the resistors dissipate equal amounts of power.
Sikandar B.

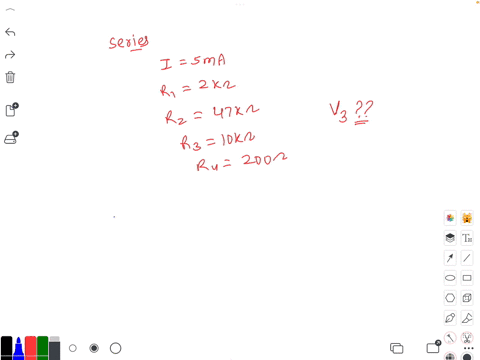

Multiple Choice. In a series circuit if I= 5ma, R1= 2kohms, R2= 47kohms, R3= 10kohms, R4= 200ohms, the voltage across R3 would be? A) 1V B) 235V C) 10V D) 50V
