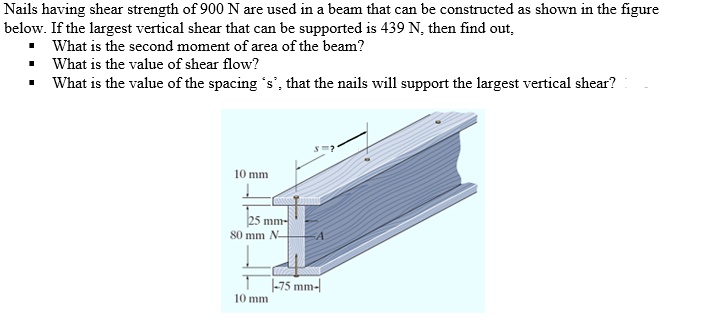

Nails having shear strength of 900 N are used in a beam that can be constructed as shown in the figure below. If the largest vertical shear that can be supported is 439 N, then find out, • What is the second moment of area of the beam? • What is the value of shear flow? • What is the value of the spacing 's', that the nails will support the largest vertical shear?
Added by Shane R.
Close
Step 1
Step 1: Find the shear strength of the nails. Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 63 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Draw the shear and moment diagrams for the beam subjected to the end couple. After you have the diagrams, answer the questions. 2.4 m 2.1 m 230 N·m Questions At a section 0.8 m to the right of A, V = N, M = N·m At a section 3.3 m to the right of A, V = N, M = N·m
Chandra J.

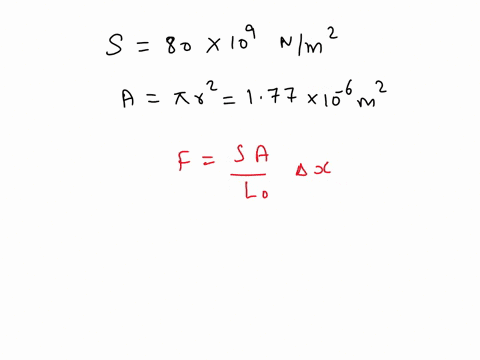

Find the mass of the picture hanging from a steel nail, as shown in the figure, given that the nail bends only 1.80 µm. (Assume the shear modulus is S = 80 × 10^9 N/m^2.) Δx = 1.80 µm 1.50 mm L₀ = 5.00 mm
Madhur L.
For the beam shown below, compute the maximum stress due to bending. The cross section of the beam is a rectangle 100 mm high and 25 mm wide. The load at the middle of the beam is 1500 N and the length of the beam is 3.40 m. 1500 N 1.7 m 3.4 m R1 = 750 N R2 = 750 N Beam cross section 750 Shearing force V(N) c = 50 mm Centroidal Axis c = 50 mm -750 h = 100 mm 1275 N·m Bending moment M(N·m) b = 25 mm
