00:04
So in this question, we should know the pattern of magnetic wheel apart.
00:07
So if this is my art, we know these are the equators and these are the poles.
00:16
So here the magnetic field is, if you look at this region, the magnetic field is parallel to the horizontal.
00:26
So in this case, the magnetic field is parallel to horizontal.
00:28

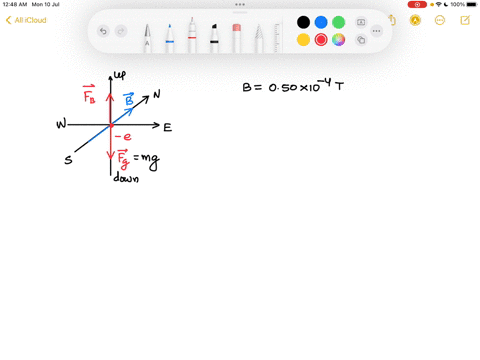

So let's suppose if you are sitting at equator and the magnetic field is acting in this direction.
00:35
So there would be, let's say an electron which will experience weight towards the center of earth.
00:44
It will experience a weight towards the center of earth.
00:48
Now to nullify this weight, we need to apply a magnetic force in this direction.
00:52
The direction of a magnetic force would be equal to qb cross b.
00:58
Now q is negative, which implies i can put it minus a b cross b magnetic force will be e into magnetic field cross velocity.
01:16
So the direction of magnetic field, the direction of the magnetic force will be given by the cross product of magnetic field and velocity.
01:27
So we can see that if the velocity is pointing towards me, if the velocity is pointing towards me, then the cross product of velocity cross product of magnetic field and velocity will point in this direction.
01:45
This we can do by assuming a coordinate system also.
01:48
This is x -axis.
01:49
This is y -axis.
01:50
So you see the magnetic field come here.
01:57
Magnetic field vector is oriented in j direction and velocity is oriented in z direction...
