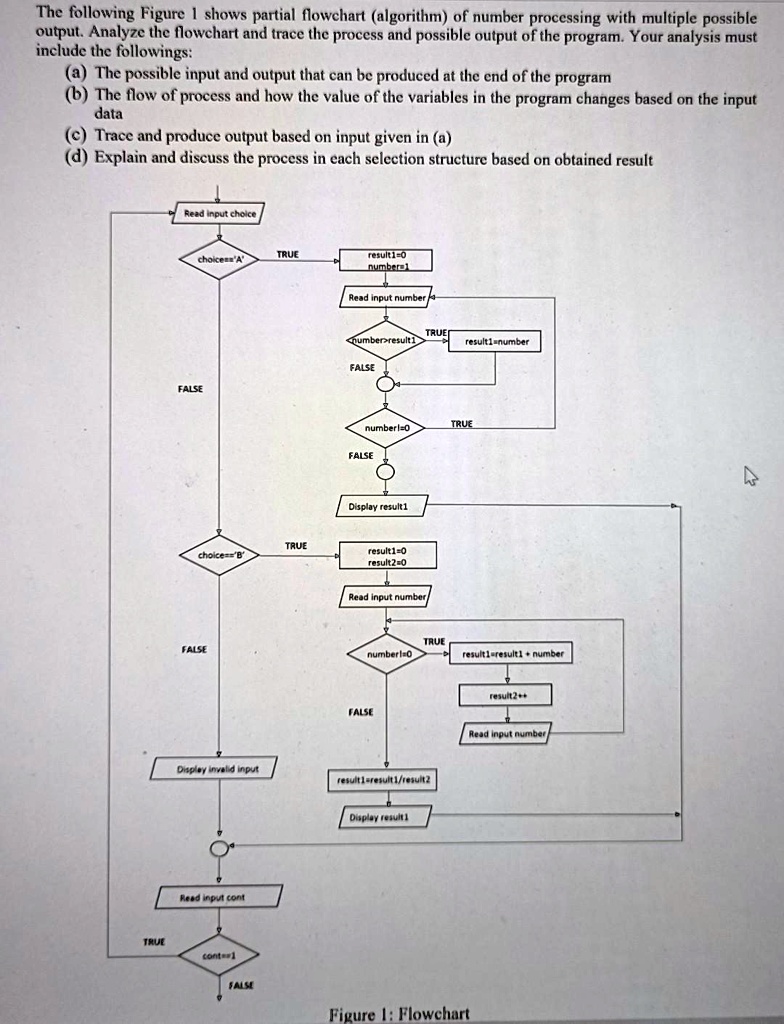

The following Figure 1 shows partial flowchart (algorithm) of number processing with multiple possible output. Analyze the flowchart and trace the process and possible output of the program. Your analysis must include the followings: (a) The possible input and output that can be produced at the end of the program (b) The flow of process and how the value of the variables in the program changes based on the input data (c) Trace and produce output based on input given in (a) (d) Explain and discuss the process in each selection structure based on obtained result Read input choice TRUE choice=='A' result1=0 number=1 Read input number TRUE <number>resulti result1-number FALSE FALSE TRUE choice=='B' FALSE number!=0 TRUE FALSE Display result1 result1=0 result2=0 Read input number TRUE number!=0 result1 result1+ number result2++ FALSE Read input number Displey invalid input result 1-result1/result? Display result 1 Read input cont TRUE cont=1 FALSE Figure 1: Flowchart
Added by Christine V.
Close
Step 1
The "choice" input can be any value, while the "number" input can be any integer value. - Output: The possible outputs at the end of the program depend on the values of the inputs and the flow of the process. Without knowing the specific values of the inputs, it Show more…
Show all steps
