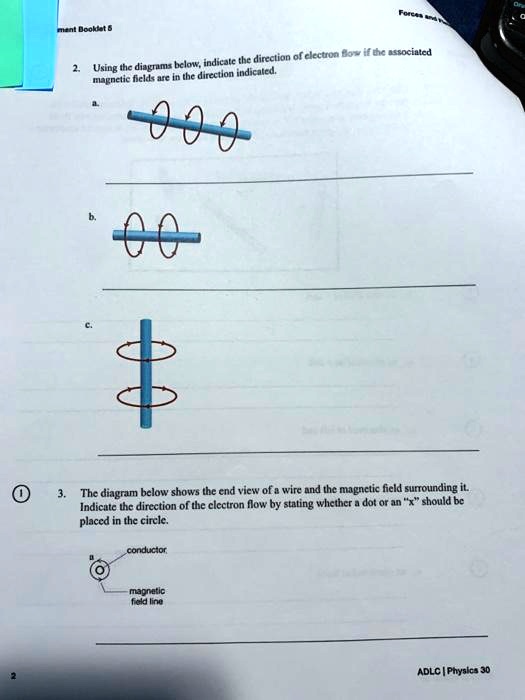

2. Using the diagrams below, indicate the direction of electron flow if the associated magnetic fields are in the direction indicated. a. b. c. 3. The diagram below shows the end view of a wire and the magnetic field surrounding it. Indicate the direction of the electron flow by stating whether a dot or an "x" should be placed in the circle. conductor magnetic field line

          2. Using the diagrams below, indicate the direction of electron flow if the associated magnetic fields are in the direction indicated.
a.
b.
c.
3. The diagram below shows the end view of a wire and the magnetic field surrounding it. Indicate the direction of the electron flow by stating whether a dot or an "x" should be placed in the circle.
conductor
magnetic field line

2. Using the diagrams below, indicate the direction of electron flow if the associated magnetic fields are in the direction indicated.
a.
b.
c.
3. The diagram below shows the end view of a wire and the magnetic field surrounding it. Indicate the direction of the electron flow by stating whether a dot or an "x" should be placed in the circle.
conductor
magnetic field line

Added by Sarah S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

07/18/2022

Step 1

Step 1: Determine the direction of the magnetic field in the given diagram. Show more…

Show all steps

Thanks for your feedback!

The diagram below shows the end view of a wire and the magnetic field surrounding it. Indicate the direction of electron flow by stating whether a dot or an "x" should be placed in the circle.
