Question 4 (Mensuration)-25 marks (a) The following figure shows an offset traverse to determine the area from a road (at the bottom) to an irregular boundary line (on the top) at a horizontal interval of 10m apart. The offsets are measured in metres. Use trapezoidal method to find the approximate area encompassed by this survey. [10] 5.0 2.5 3.5 4.5 3.2 0 (b) The following figure shows an embankment of width 10 m and side slopes 1.5:1 on a level ground in a direction transverse to the centre line. The central heights (in m) at 40 m intervals are as follows: 0.90, 1.25, 2.15, 2.50, 1.85, 1.35, and 0.85 Calculate the volume of earthwork using: (i) Trapezoidal method; and (ii) Simpson's method. [15]

          Question 4 (Mensuration)-25 marks
(a)

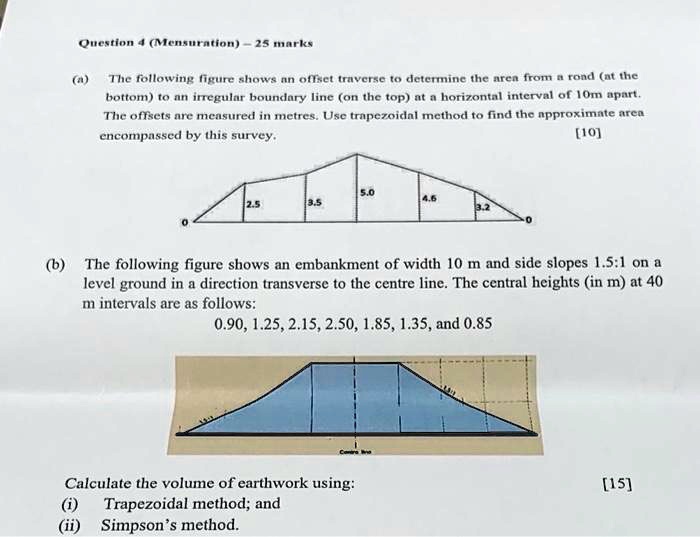

The following figure shows an offset traverse to determine the area from a road (at the
bottom) to an irregular boundary line (on the top) at a horizontal interval of 10m apart.
The offsets are measured in metres. Use trapezoidal method to find the approximate area
encompassed by this survey.
[10]
5.0
2.5
3.5
4.5
3.2
0
(b) The following figure shows an embankment of width 10 m and side slopes 1.5:1 on a
level ground in a direction transverse to the centre line. The central heights (in m) at 40
m intervals are as follows:
0.90, 1.25, 2.15, 2.50, 1.85, 1.35, and 0.85
Calculate the volume of earthwork using:
(i) Trapezoidal method; and
(ii) Simpson's method.
[15]

Question 4 (Mensuration)-25 marks
(a)
The following figure shows an offset traverse to determine the area from a road (at the
bottom) to an irregular boundary line (on the top) at a horizontal interval of 10m apart.
The offsets are measured in metres. Use trapezoidal method to find the approximate area
encompassed by this survey.
[10]
5.0
2.5
3.5
4.5
3.2
0
(b) The following figure shows an embankment of width 10 m and side slopes 1.5:1 on a
level ground in a direction transverse to the centre line. The central heights (in m) at 40
m intervals are as follows:
0.90, 1.25, 2.15, 2.50, 1.85, 1.35, and 0.85
Calculate the volume of earthwork using:
(i) Trapezoidal method; and
(ii) Simpson's method.
[15]
