Linear distribution p = -0.25 ?U^2 U = ft/s p = 0.5 ?U^2 0.1 ft b = length = 4 ft Problem Statement: Assume that water flowing past the equilateral triangular bar shown in the figure produces the pressure distributions indicated. Determine the lift and drag on the bar and the corresponding lift and drag coefficients (based on frontal area). Neglect shear forces. U = 6 ft/s Answer tolerance = 2%. Be sure to include units where necessary. Your answers: D = CD = CL =
Added by Vincent M.
Close
Step 1
### Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 65 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The beam AB is subjected to the uniformly distributed load shown and to two unknown forces P and Q. It has been experimentally determined that the bending moment is +6.10 kip-ft at D and +5.50 kip-ft at E. P 250 lb/ft B D E F 2 ft 2 ft 4 ft 2 ft Determine P and Q. (Round the final answer to two decimal places.) The value of P = kips. The value of Q = kips.
Sri K.

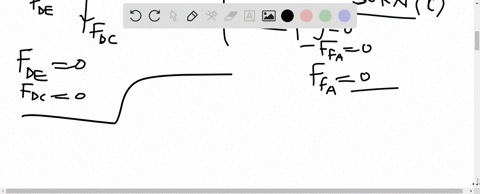

Determine the bar force of member AD (in kN) of the truss shown if P = 16 kN and Q = 40 kN. Use 3 decimal places when rounding off values. If the bar force is in compression, input your answer as negative.
Umar Sohail Q.

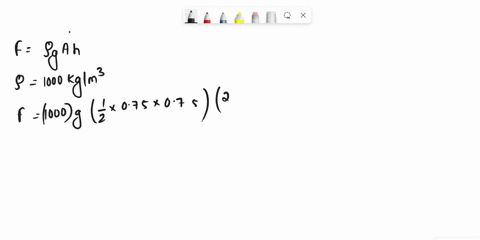

1. The tank is fined with water. Determine the resultant force acting on the triangular plate A and the location of the center of pressure. Measured from the top of the tank. Solve the problem using the formula method (Hibbeler, 2015).
