P = 1900 LB Determine force in member HG, HE, DE of the truss
Added by Jose
Close
Step 1
Assuming this is a statically determinate truss and the structure is in equilibrium, we can use the method of joints or the method of sections. Without a specific diagram, we'll assume a common truss configuration and use the method of joints, starting from a Show more…
Show all steps
Your feedback will help us improve your experience
Pritesh Ranjan and 95 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

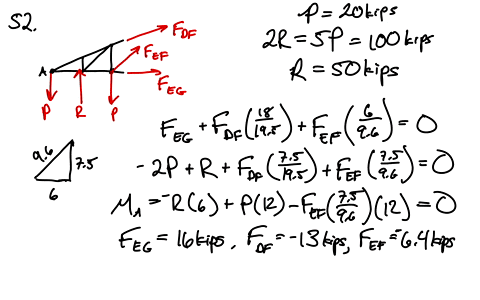

Determine the force in members $E G$ and $E F$ of the truss shown when $P=20$ kips.
Analysis of Structures
Other Truss Analyses

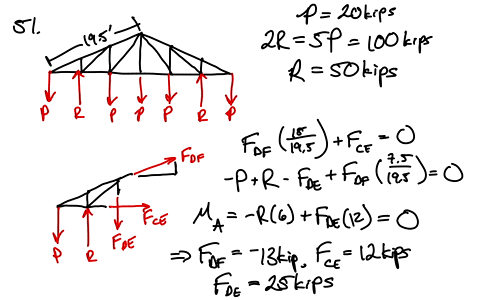

Determine the force in members $D E$ and $D F$ of the truss shown when $P=20$ kips.
