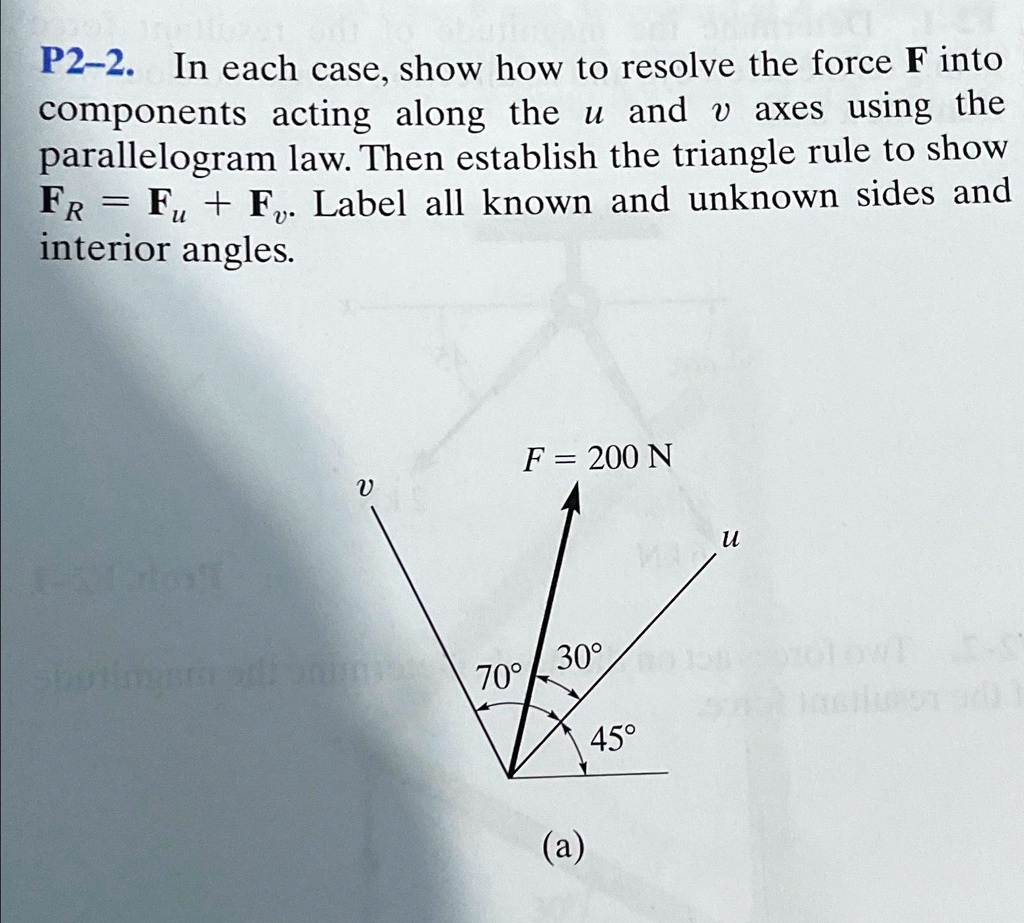

P2-2. In each case, show how to resolve the force F into components acting along the u and v axes using the parallelogram law. Then establish the triangle rule to show FR = Fu + Fv. Label all known and unknown sides and interior angles. F = 200 N v 30° 70° 45° u (a)

          P2-2. In each case, show how to resolve the force F into components acting along the u and v axes using the parallelogram law. Then establish the triangle rule to show FR = Fu + Fv. Label all known and unknown sides and interior angles.
F = 200 N
v
30°
70°
45°
u
(a)

P2-2. In each case, show how to resolve the force F into components acting along the u and v axes using the parallelogram law. Then establish the triangle rule to show FR = Fu + Fv. Label all known and unknown sides and interior angles.
F = 200 N
v
30°
70°
45°
u
(a)

Added by Donna T.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Andreas Papavassiliou

11/19/2024

Step 1

- Force \( F = 200 \, \text{N} \) - Angle between \( F \) and \( u \) axis is \( 30^\circ \) - Angle between \( F \) and \( v \) axis is \( 70^\circ \) - Angle between \( u \) and \( v \) axes is \( 45^\circ \) Show more…
