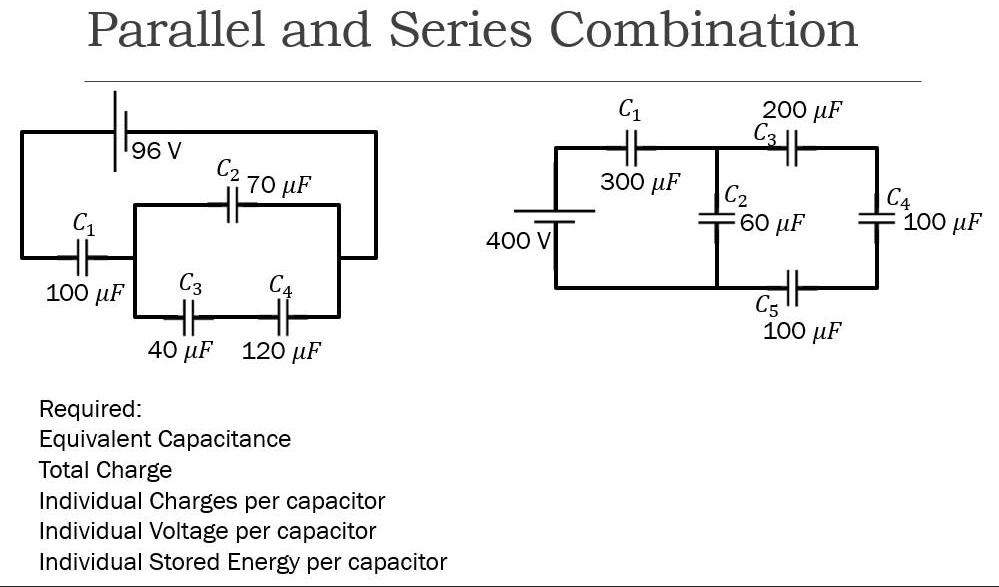

Parallel and Series Combination 96 V C2 70 ?F C1 100 ?F C3 40 ?F C4 120 ?F C1 300 ?F C3 200 ?F C2 60 ?F C4 100 ?F 400 V C5 100 ?F Required: Equivalent Capacitance Total Charge Individual Charges per capacitor Individual Voltage per capacitor Individual Stored Energy per capacitor
Added by Rebecca P.
Close
Step 1
The text seems to be a bit jumbled, but let's assume we have the following capacitors: C1 = 200uF, C2 = 300uF, C3 = 60uF, C4 = 100F, and C5 = 40uF, all connected in some combination of parallel and series. The voltage rating provided (e.g., 96V for C1, 400V for Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 61 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

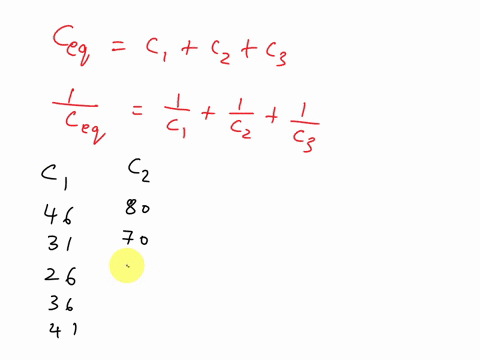

Title: Series and Parallel Capacitor Combination The equivalent capacitance of three capacitors C1, C2, and C3, all connected in a parallel network, is given by: Ceq = C1 + C2 + C3 When all three capacitors are connected in series, the equivalent capacitance of the series network is given by: 1/Ceq = 1/C1 + 1/C2 + 1/C3 The table below shows five different combinations of C1, C2, and C3 in units of microfarad (μF). For each set, calculate the equivalent capacitance of a series and parallel network and complete the table. C1[μF] C2[μF] C3[μF] Ceq[μF][Series] Ceq[μF][Parallel] 46 80 111 31 237 70 156 26 17 252 85 146 36 13 267 80 161 41 10 282 90 191 - - -
Madhur L.
Two capacitors when connected in parallel produce an equivalent capacitance of 30 μF, but when connected in series give an equivalent capacitance of just 5 μF. What is the individual capacitance of each capacitor?
Adi S.
the series combination of 5.0 F and 20.0 F capacitors is connected in parallel to a 40.0 F capacitor. (a) The equivalent capacitance is ?(b) What is the total charge stored in the combination of capacitors when connected to 100V? (c) What is the energy stored in the combination of capacitor?
