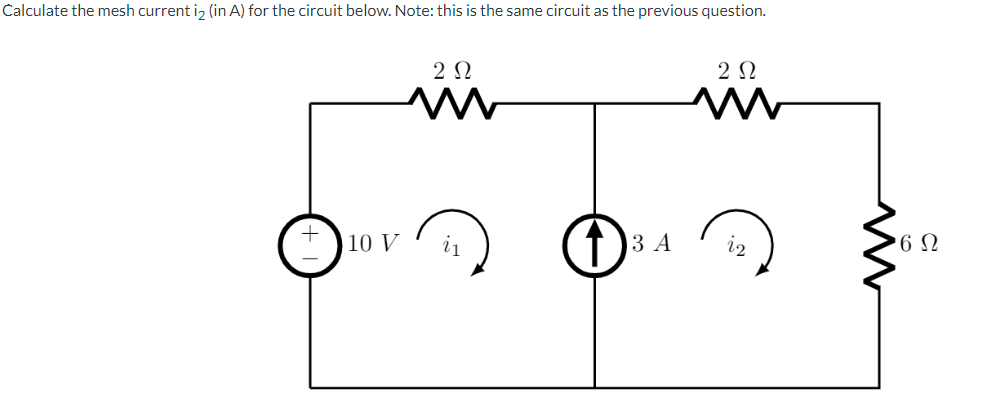

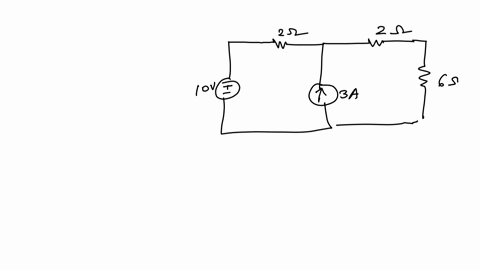

Calculate the mesh current ( mathrm{i}_{2} ) (in ( mathrm{A} ) ) for the circuit below. Note: this is the same circuit as the previous question.
Added by Andy L.
Close

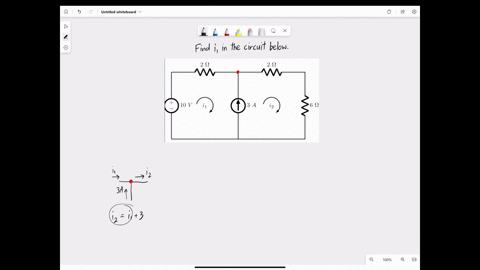

Step 1
Step 1: Apply Kirchhoff's voltage law to the first loop: \[10 - 2i1 + 3(2) = 0\] \[10 - 2i1 + 6 = 0\] \[2i1 = 16\] \[i1 = 8\,A\] Show more…
