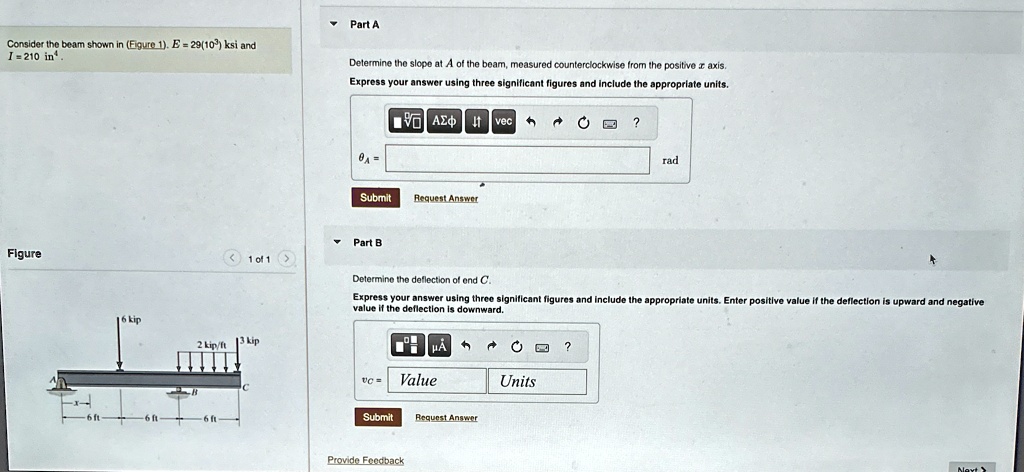

Part A
Consider the beam shown in (Figure 1). $E = 29(10^3)$ ksi and
$I = 210$ in$^4$.
Figure

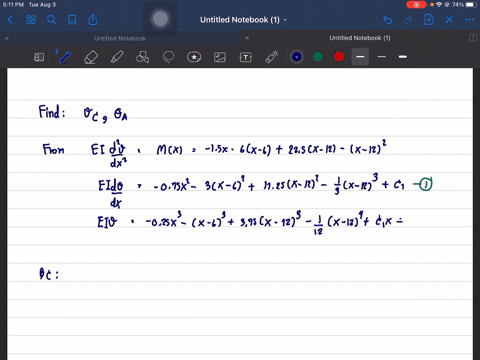

Determine the slope at A of the beam, measured counterclockwise from the positive x axis.
Express your answer using three significant figures and include the appropriate units.
$\theta_A = $
rad
Submit
Request Answer
Part B
Determine the deflection of end C.
Express your answer using three significant figures and include the appropriate units. Enter positive value if the deflection is upward and negative value if the deflection is downward.
$v_C = $
Value
Units
Submit
Request Answer
Provide Feedback
1 of 1
6 kip
2 kip/ft 3 kip
A
B
C
6 ft
6 ft
6 ft
