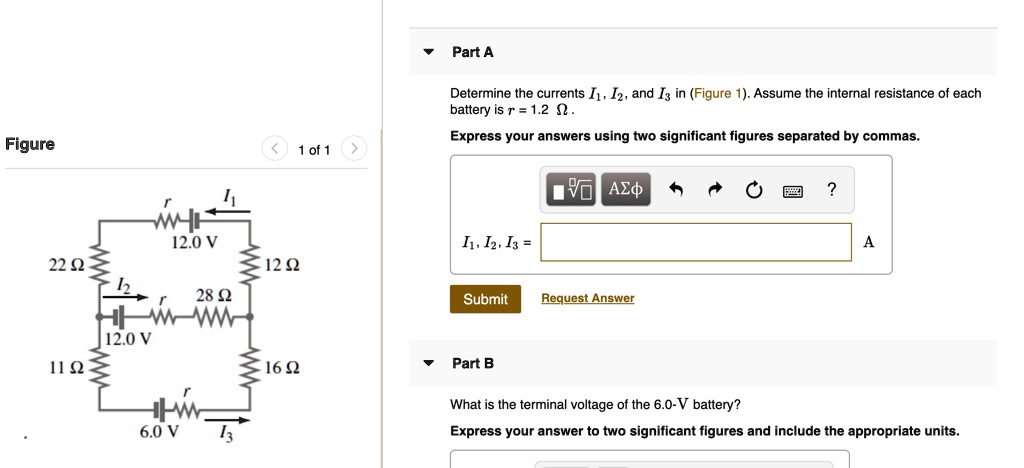

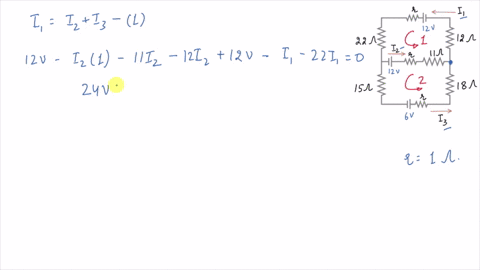

Part A Determine the currents I1, I2, and I3 in (Figure 1). Assume the internal resistance of ea

Name: Part A Determine the currents I1, I2, and I3 in (Figure 1). Assume the internal resistance of each battery is r = 1.2 ?. Express your answers using two significant figures separated by commas. I1, I2, I3 = A Part B What is the terminal voltage of the 6.0-V battery? Express your answer to two significant figures and include the appropriate units.
Uploaded: 2022-03-25T16:52:39-08:00
Duration: 4 min 51 s
Channel: Shaiju T
Description: Part A Determine the currents I1, I2, and I3 in (Figure 1). Assume the internal resistance of each battery is r = 1.2 ?. Express your answers using two significant figures separated by commas. I1, I2, I3 = A Part B What is the terminal voltage of the 6.0-V battery? Express your answer to two significant figures and include the appropriate units.

Question

Vipin Kumawat · Accepted Answer

First, we need to find the total resistance in the circuit. We have three resistors in series (1
