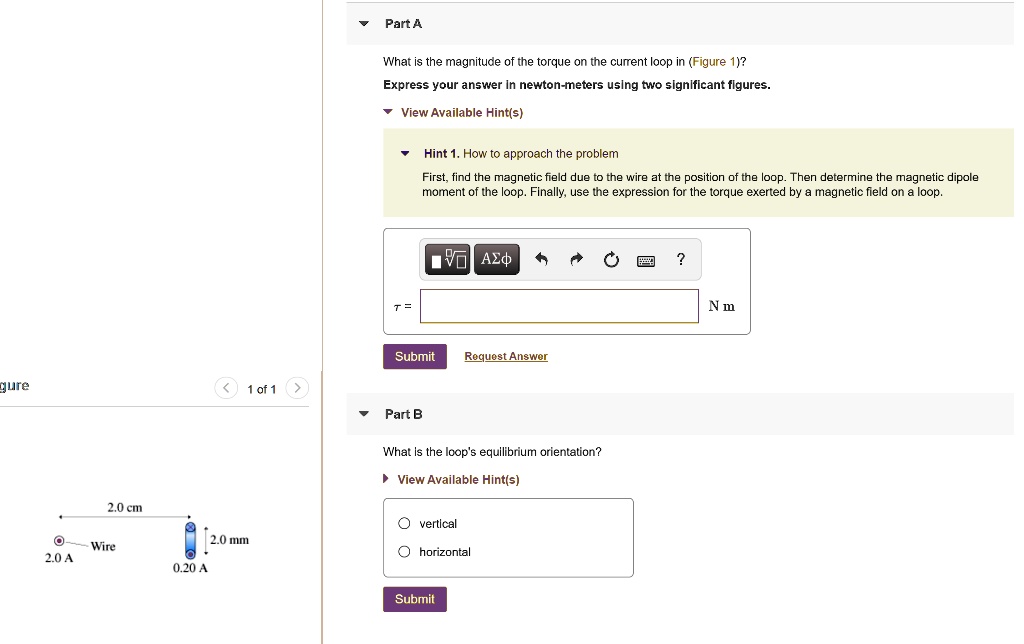

Part A What is the magnitude of the torque on the current loop in (Figure 1)? Express your answer in newton-meters using two significant figures. Hint 1. How to approach the problem First, find the magnetic field due to the wire at the position of the loop. Then determine the magnetic dipole moment of the loop. Finally, use the expression for the torque exerted by a magnetic field on a loop. ? = _____ N m Part B What is the loop's equilibrium orientation? ? vertical ? horizontal (Figure) Wire carrying 2.0 A, 2.0 cm separation to loop, loop current 0.20 A, loop diameter 2.0 mm.
Added by Donna B.
Close
Step 1
- Use the formula for the magnetic field \( B \) due to a long straight wire: \[ B = \frac{\mu_0 I}{2\pi r} \] where \( \mu_0 = 4\pi \times 10^{-7} \, \text{T}\cdot\text{m/A} \), \( I = 20 \, \text{A} \), and \( r = 0.02 \, \text{m} \). Show more…
Show all steps
Your feedback will help us improve your experience
Shaiju T and 95 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

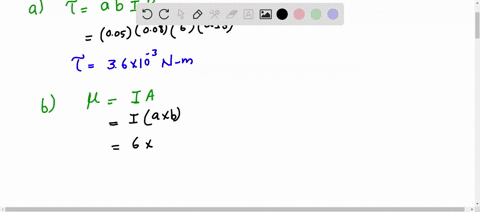

The plane of a 5.0 cm x 8.0 cm rectangular loop of wire is parallel to a 0.15 T magnetic field. The loop carries a current of 6.0 A. Part A: What torque acts on the loop? Express your answer using two significant figures. Part B: What is the magnetic moment of the loop? Express your answer using two significant figures. Part C: What is the maximum torque that can be obtained with the same total length of wire carrying the same current in this magnetic field? Express your answer using two significant figures.
Sikandar B.
Vishal G.
The loop of wire shown in Fig. P27. 80 forms a right triangle and carries a current $I = 5.00$ A in the direction shown. The loop is in a uniform magnetic field that has magnitude $B = 3.00 \mathrm { T }$ and the same direction as the current in side $P Q$ of the loop. (a) Find the force exerted by the magnetic field on each side of the triangle. If the force is not zero, specify its direction. (b) What is the net force on the loop? (c) The loop is pivoted about an axis that lies along side $P R .$ Use the forces calculated in part (a) to calculate the torque on each side of the loop (see Problem 27.79 ). (d) What is the magnitude of the net torque on the loop? Calculate the net torque from the torques calculated in part (c) and also from Eq. $( 27.28 ) .$ Do these two results agree? (e) Is the net torque directed to rotate point $Q$ into the plane of the figure or out of the plane of the figure?
