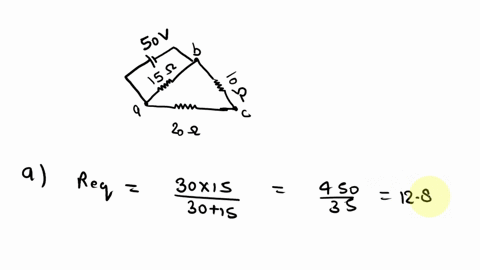

A triangular array of resistors is shown in in the figure (Figure 1). What current will this array draw from a 45.0 V battery having negligible internal resistance if we connect it across (a) ab, (b) bc, (c) ac? I= 5.79 A Submit Previous Answers Figure W 15.0 ? b 10.0 ? a C 20.0 ? 1 of 1 ? Correct Part C I = 4.05 A Submit Previous Answers ? Correct Part D If the battery has an internal resistance of 2.00 ?, what current will the array draw if the battery is connected across bc? ?? ??? I = Submit Previous Answers Request Answer * Incorrect; Try Again; 3 attempts remaining Provide Feedback ?A

          A triangular array of resistors is shown in in the figure (Figure 1). What
current will this array draw from a 45.0 V battery having negligible
internal resistance if we connect it across (a) ab, (b) bc, (c) ac?
I= 5.79 A
Submit Previous Answers
Figure
W
15.0 ?
b
10.0 ?
a
C
20.0 ?
1 of 1
? Correct
Part C
I = 4.05 A
Submit
Previous Answers
? Correct
Part D
If the battery has an internal resistance of 2.00 ?, what current will the array draw if the battery is connected across bc?
?? ???
I =
Submit Previous Answers Request Answer
* Incorrect; Try Again; 3 attempts remaining
Provide Feedback
?A

A triangular array of resistors is shown in in the figure (Figure 1). What
current will this array draw from a 45.0 V battery having negligible
internal resistance if we connect it across (a) ab, (b) bc, (c) ac?
I= 5.79 A
Submit Previous Answers
Figure
W
15.0 ?
b
10.0 ?
a
C
20.0 ?
1 of 1
? Correct
Part C
I = 4.05 A
Submit
Previous Answers
? Correct
Part D
If the battery has an internal resistance of 2.00 ?, what current will the array draw if the battery is connected across bc?
?? ???
I =
Submit Previous Answers Request Answer
* Incorrect; Try Again; 3 attempts remaining
Provide Feedback
?A
