Question

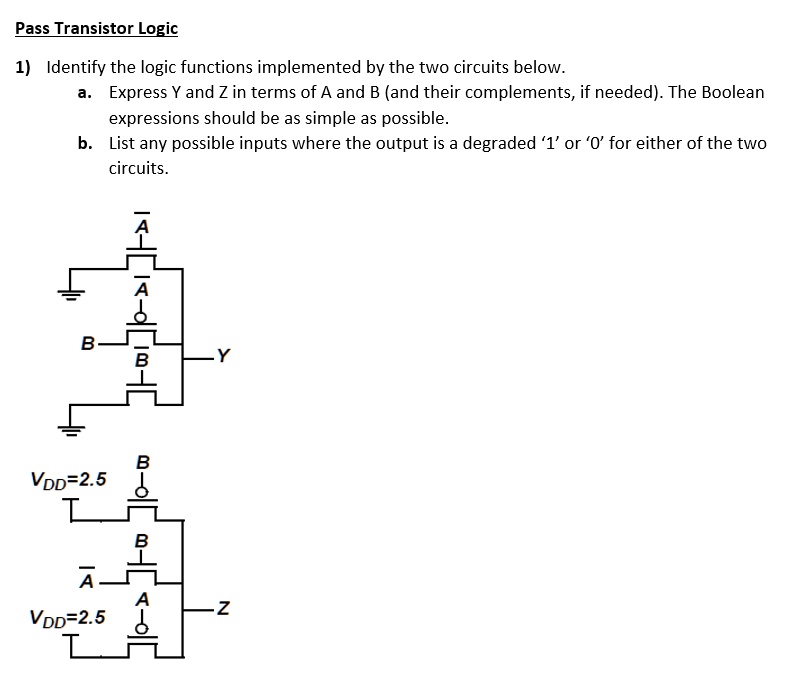

Pass Transistor Logic 1) Identify the logic functions implemented by the two circuits below. a. Express Y and Z in terms of A and B (and their complements, if needed). The Boolean expressions should be as simple as possible. b. List any possible inputs where the output is a degraded '1' or '0' for either of the two circuits.

          Pass Transistor Logic
1) Identify the logic functions implemented by the two circuits below.
a. Express Y and Z in terms of A and B (and their complements, if needed). The Boolean
expressions should be as simple as possible.
b. List any possible inputs where the output is a degraded '1' or '0' for either of the two
circuits.

Pass Transistor Logic
1) Identify the logic functions implemented by the two circuits below.
a. Express Y and Z in terms of A and B (and their complements, if needed). The Boolean
expressions should be as simple as possible.
b. List any possible inputs where the output is a degraded '1' or '0' for either of the two
circuits.

Added by Jessica S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

09/18/2023

Step 1

- The first circuit has two NMOS transistors. - The top NMOS transistor is controlled by \( \overline{A} \) and the bottom NMOS transistor is controlled by \( B \). - When \( \overline{A} \) is high (i.e., \( A \) is low), the top transistor is on, and when \( B Show more…

Show all steps
