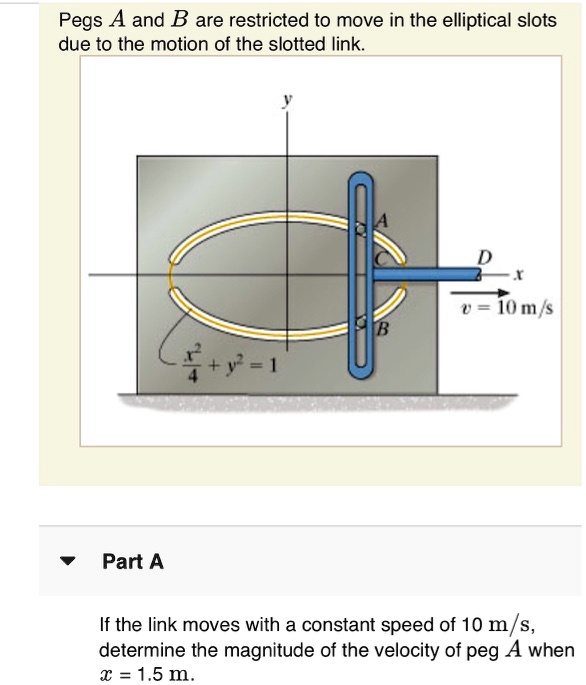

Pegs A and B are restricted to move in the elliptical slots due to the motion of the slotted link. frac{x^2}{4} + y^2 = 1 Part A If the link moves with a constant speed of 10 m/s, determine the magnitude of the velocity of peg A when $x = 1.5$ m.
Added by Matthew T.
Close
Step 1
The equation of the ellipse is given by: \[ \frac{x^2}{4} + y^2 = 1 \] Show more…
Show all steps
Your feedback will help us improve your experience
Mahendra Kumar and 75 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Pegs A and B are restricted to move in the elliptical slots due to the motion of the slotted link. If the link moves with a constant speed v = 10m/s, determine the velocity and acceleration vectors of peg A when x = 1m. Hint: Derivatives, chain rule, you know the drill. Careful! Pegs have vx and vy components (and what does vx have to be?)!
Paul G.
The peg is constrained to move in the slots of the fixed bar $C D$ and rotating bar $A B .$ When $\theta=30^{\circ}$, the angular velocity and angular acceleration of arm $A B$ are $\dot{\theta}=2 \mathrm{rad} / \mathrm{s}$ and $\ddot{\theta}=3$ rad $/ \mathrm{s}^{2},$ respectively. Determine the magnitudes of the velocity and acceleration of the peg $P$ at this instant.
If the slotted arm $A B$ rotates counterclockwise with a constant angular velocity of $\dot{\theta}=2 \mathrm{rad} / \mathrm{s}$, determine the magnitudes of the velocity and acceleration of peg $P$ at $\theta=30^{\circ} .$ The peg is constrained to move in the slots of the fixed bar $C D$ and rotating bar $A B$
