Phys 1001 Exam 3 Comprehensive Review Problem (The exam problems won't be this long/complicated) In the contraption shown below, a cord unwinds from a cylinder, then passes over a non-ideal pulley, and then attaches to a hanging box. The cylinder can be considered a uniform solid disk with mass mc = 5.00 kg and radius rc = 40.0 cm. The pulley is also a uniform solid disk with mass mp = 2.00 kg and rp = 20.0 cm (the pulley is non-ideal because it will have rotational inertia). Both the cylinder and the pulley turn without friction, and there is no slipping between the cord and the pulley surface. The box has mass m = 3.00 kg. The box is released from rest and accelerates downward as the cord unwinds from the cylinder. a) Use conservation of mechanical energy to find the linear speed of the box when it has descended 2.50 m. Then find the angular speeds (ωc and ωp) of the cylinder and the pulley (they will be different from each other since they have different radii). b) Use a linear constant acceleration formula to find the linear acceleration of the box. Then find the angular accelerations (αc and αp) of the cylinder and the pulley. c) Use Newton's 2nd law equations (in linear or rotational form as appropriate) to find the tension in the horizontal portion of the cord (T) and the tension in the vertical portion of the cord (T) (the tension will not be the same on each side of the pulley since it's not an ideal pulley). Include free-body diagrams. Pulley Cylinder Box

          Phys 1001 Exam 3 Comprehensive Review Problem (The exam problems won't be this long/complicated)

In the contraption shown below, a cord unwinds from a cylinder, then passes over a non-ideal pulley, and then attaches to a hanging box. The cylinder can be considered a uniform solid disk with mass mc = 5.00 kg and radius rc = 40.0 cm. The pulley is also a uniform solid disk with mass mp = 2.00 kg and rp = 20.0 cm (the pulley is non-ideal because it will have rotational inertia). Both the cylinder and the pulley turn without friction, and there is no slipping between the cord and the pulley surface. The box has mass m = 3.00 kg. The box is released from rest and accelerates downward as the cord unwinds from the cylinder.

a) Use conservation of mechanical energy to find the linear speed of the box when it has descended 2.50 m. Then find the angular speeds (ωc and ωp) of the cylinder and the pulley (they will be different from each other since they have different radii).

b) Use a linear constant acceleration formula to find the linear acceleration of the box. Then find the angular accelerations (αc and αp) of the cylinder and the pulley.

c) Use Newton's 2nd law equations (in linear or rotational form as appropriate) to find the tension in the horizontal portion of the cord (T) and the tension in the vertical portion of the cord (T) (the tension will not be the same on each side of the pulley since it's not an ideal pulley). Include free-body diagrams.

Pulley
Cylinder
Box
Show more…
phys 1001 exam 3 comprehensive review problem the exam problems wont be this longcomplicated in the contraption shown belowa cord unwinds from a cylinderthen passes over a non ideal pulleyan 30202

Added by James P.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
Phys 1001 Exam 3 Comprehensive Review Problem (The exam problems won't be this long/complicated) In the contraption shown below, a cord unwinds from a cylinder, then passes over a non-ideal pulley, and then attaches to a hanging box. The cylinder can be considered a uniform solid disk with mass mc = 5.00 kg and radius rc = 40.0 cm. The pulley is also a uniform solid disk with mass mp = 2.00 kg and rp = 20.0 cm (the pulley is non-ideal because it will have rotational inertia). Both the cylinder and the pulley turn without friction, and there is no slipping between the cord and the pulley surface. The box has mass m = 3.00 kg. The box is released from rest and accelerates downward as the cord unwinds from the cylinder. a) Use conservation of mechanical energy to find the linear speed of the box when it has descended 2.50 m. Then find the angular speeds (ωc and ωp) of the cylinder and the pulley (they will be different from each other since they have different radii). b) Use a linear constant acceleration formula to find the linear acceleration of the box. Then find the angular accelerations (αc and αp) of the cylinder and the pulley. c) Use Newton's 2nd law equations (in linear or rotational form as appropriate) to find the tension in the horizontal portion of the cord (T) and the tension in the vertical portion of the cord (T) (the tension will not be the same on each side of the pulley since it's not an ideal pulley). Include free-body diagrams. Pulley Cylinder Box
Close icon
Play audio
Feedback
Powered by NumerAI
Ivan Kochetkov David Collins
Jennifer Stoner verified

Ivan Kochetkov and 85 other subject Physics 103 educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
a-pulley-on-a-frictionless-axle-has-the-shape-of-a-uniform-solid-disk-of-mass-260-kg-and-radius-200-cm-a-190-kg-stone-is-attached-to-a-very-light-wire-that-is-wrapped-around-the-rim-of-the-pulley-figu

A pulley on a frictionless axle has the shape of a uniform solid disk of mass 2.60 kg and radius 20.0 cm . A 1.90 kg stone is attached to a very light wire that is wrapped around the rim of the pulley (Figure 1), and the system is released from rest

Ivan K.
b-a-100-kg-box-resting-on-a-horizontal-frictionless-surface-is-attached-to-a-600-kg-weight-by-a-thin-light-wire-that-passes-over-a-frictionless-pulley-the-pulley-has-the-shape-of-a-uniform-s-24236

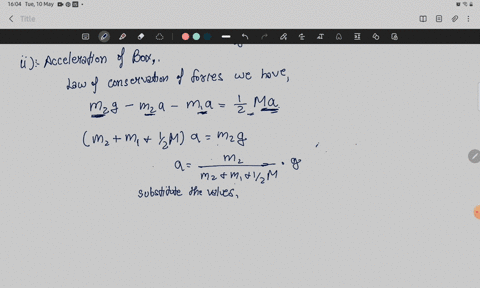

b) A 10.0 kg box resting on a horizontal, frictionless surface is attached to a 6.00 kg weight by a thin, light wire that passes over a frictionless pulley. The pulley has the shape of a uniform solid disk of mass 1.80 kg and diameter 0.620 m (equation for the moment of Inertia is below). (Show all working as marks will be assigned for full and complete working, including diagrams). (i) Draw a free body diagram for this example. (ii) After the system is released, what is the acceleration of the box? (iii) Find the tension in the wire on both sides of the pulley. (iv) What are the horizontal and vertical components of the force that the axle exerts on the pulley? c) A 16.0 kg block attached to a very light horizontal spring of force constant 535.0 N/m and is resting on a frictionless horizontal table. Suddenly it is struck by a 2.80 kg stone traveling horizontally at 10.00 m/s to the right, whereupon the stone rebounds at 3.00 m/s horizontally to the left. (i) Find the velocity of the block (v'B) during the collision. (ii) Find the maximum distance that the block will compress the spring after the collision.

Neelesh S.
problem-solving-show-your-complete-solution-for-each-problem-1-a-light-rope-is-attached-to-block-with-mass-of-6kg-that-rests-on-horizontal-frictionless-surface-the-horizontal-rope-passes-ove-11235

Problem solving: Show your complete solution for each problem. 1. A light rope is attached to a block with a mass of 6kg that rests on a horizontal, frictionless surface. The horizontal rope passes over a frictionless, massless pulley, and a block of mass m is suspended from the other end. When the blocks are released, the tension in the rope is 18N. (a) draw a free-body diagram for each block. (b) what is the acceleration of the 6-kg block? (c) what is the mass m of the hanging block? (d) using the value of the hanging mass calculated in part c, what would be the acceleration and the tension in the rope if the coefficient of kinetic friction between the 6-kg mass and the horizontal is 0.10? 2. A work of 12 J is needed to stretch a certain spring by 30 cm a) What is the force constant of the spring? b) How much work must be done to stretch the spring 4.00 cm? c) When released from rest from 4.00 cm position what would be the speed at the unstretched position? 3. A 2kg block is pulled up a ramp by a constant force parallel to the ramp of 15 N. The ramp is 2m long and inclined at 30° above the horizontal. If the coefficient of kinetic friction between the block and the ramp is μk = 0.30, what is the speed of the block at the top of the ramp?

Vishal G.
*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,702 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,123 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,381 solutions
*

Transcript

-

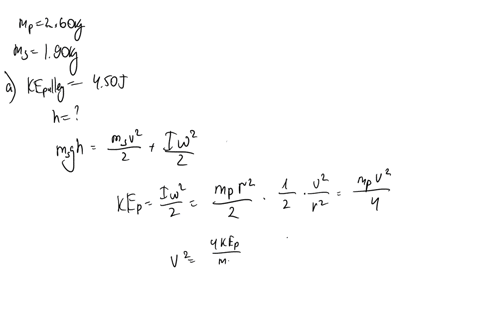

00:01 Oh, here we have to solve the following problem.
00:03 Disc has a mass of 2 .6 kilograms.
00:08 Let's call it mp, which stands for the pulley.
00:14 And the stone has a mass of 1 .9 kilograms.
00:23 In question a, we have to find how far the stone must fall, so the kinetic energy of the pulley is four and a half joules.
00:38 Let's calculate it.
00:41 So it means that this mgh, decreasing potential energy of the stone, must be equal to the kinetic energy of the stone plus rotational energy of the pulley.
00:57 Now let's rewrite it.
01:08 And here let's basically look at the kinetic energy of the pulley.
01:14 That's i omega squared over 2, which is mass of the pulley, its squared radius over 2, times one half times v squared over r squared.
01:36 So then v squared is for kinetic energy of the pulley over mass of the pulley.
01:44 Now let's write down the formula for the changing potential energy of the stone.
02:00 And let's simplify this.
02:15 Now let's calculate the height h...
