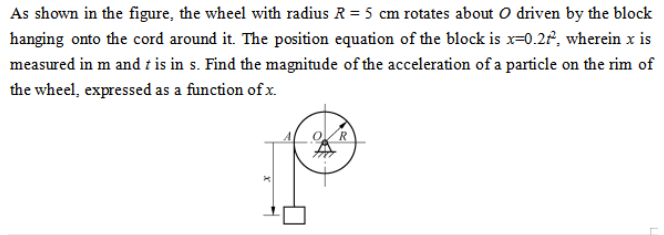

As shown in the figure, the wheel with radius \( R=5 \mathrm{~cm} \) rotates about \( O \) driven by the block hanging onto the cord around it. The position equation of the block is \( x=0.2 t^{2} \), wherein \( x \) is measured in \( \mathrm{m} \) and \( t \) is in s. Find the magnitude of the acceleration of a particle on the rim of the wheel, expressed as a function of \( x \).
Added by Dji S.
Close
Step 1
First, we need to find the velocity of the block as a function of time. To do this, we can differentiate the position equation with respect to time: \(v = \frac{dx}{dt} = 0.4t\) Show more…
Show all steps
