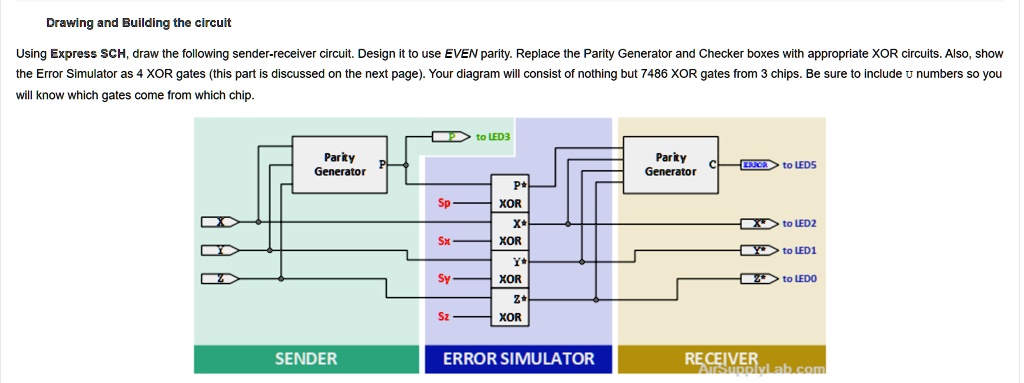

Drawing and Building the circuit Using Express SCH, draw the following sender-receiver circuit. Design it to use EVEN parity. Replace the Parity Generator and Checker boxes with appropriate XOR circuits. Also, show the Error Simulator as 4 XOR gates (this part is discussed on the next page). Your diagram will consist of nothing but 7486 XOR gates from 3 chips. Be sure to include u numbers so you will know which gates come from which chip.

          Drawing and Building the circuit
Using Express SCH, draw the following sender-receiver circuit. Design it to use EVEN parity. Replace the Parity Generator and Checker boxes with appropriate XOR circuits. Also, show
the Error Simulator as 4 XOR gates (this part is discussed on the next page). Your diagram will consist of nothing but 7486 XOR gates from 3 chips. Be sure to include u numbers so you
will know which gates come from which chip.

Drawing and Building the circuit
Using Express SCH, draw the following sender-receiver circuit. Design it to use EVEN parity. Replace the Parity Generator and Checker boxes with appropriate XOR circuits. Also, show
the Error Simulator as 4 XOR gates (this part is discussed on the next page). Your diagram will consist of nothing but 7486 XOR gates from 3 chips. Be sure to include u numbers so you
will know which gates come from which chip.

Added by Louis F.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Hubert Agamasu

Step 1

Since the task requires using only XOR gates and mentions using 3 chips, we have a total of 12 XOR gates available. - EVEN Parity means the number of 1's in the data plus the parity bit should be even. - The sender part of the circuit will include a Parity Show more…

Show all steps

Thanks for your feedback!

Please design the schematic diagram using ExpressSCH or KiCAD using only XOR gates and label them, please. With those specific chips, please. Drawing and Building the Circuit Using ExpressSCH, draw the following sender-receiver circuit. Design it to use EVEN parity. Replace the Parity Generator and Checker boxes with appropriate XOR circuits. Also, show the Error Simulator as 4 XOR gates (this part is discussed on the next page). Your diagram will consist of nothing but 7486 XOR gates from 3 chips. Be sure to include u numbers so you will know which gates come from which chip. to LED3 Parity Generator Parity Generator NO>to LED5 P+ XOR X* XOR X XOR Z* XOR Sp Xto LED2 SX Y>to LED1 Sy Z>to LED0 Sz SENDER ERROR SIMULATOR
