Determine whether the following resistors are in tolerance. Prove your results for credit Actual Ideal 9460 10k, 5% tolerance 455 470, 5% tolerance 3.24k 3.3k, 1% tolerance 10.6k 10k, 5% tolerance
Added by Sarah J.
Close
Step 1
For the first resistor, the ideal value is 9460 and the actual value is 10k. The tolerance is 5%. To determine if it is in tolerance, we need to calculate the acceptable range of values within the tolerance. The acceptable range for a 5% tolerance is calculated Show more…
Show all steps
Your feedback will help us improve your experience
Cyra Jelle Calleja and 77 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
What is the resistance and tolerance of the resistors shown? (Orange Black Red Gold) Select one: a. 100 Ohm, 10% b. 3000 Ohm, 5% c. 65,000 Ohm, 20% d. 500 Ohm, 5% e. 3 kilo Ohm, 20%
Adi S.

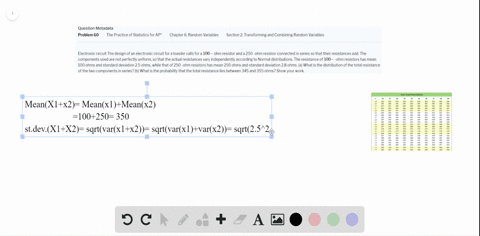

Using the colored bands on the two resistors at your table, you determine that the two resistances of the resistors are 200 ohms with 5% tolerance and 100 ohms with a 20% tolerance. What would you expect the equivalent resistance of the two resistors to be (including the uncertainty) if they are connected in series?
Umar Sohail Q.
3. For each of the three resistor values you are using, note the tolerance rating. Tolerance is a percent rating, showing how much the actual resistance could vary from the labeled value. This value is labeled on the resistor or indicated with a color code. Calculate the range of resistance values that fall in this tolerance range. Resistor 1 Resistor 2 Resistor 3 Labeled Resistor Value (Ω) Tolerance % Minimum Resistor Value (Ω) Maximum Resistor Value (Ω) 1 2 3
Himaadri L.
