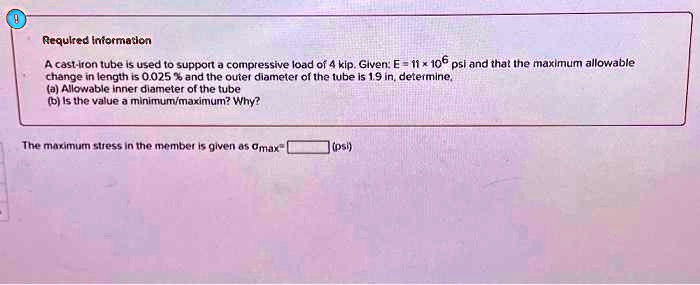

Required information A cast-iron tube is used to support a compressive load of 4 kip. Given: $E = 11 \times 10^6$ psi and that the maximum allowable change in length is 0.025% and the outer diameter of the tube is 1.9 in, determine, (a) Allowable inner diameter of the tube (b) Is the value a minimum/maximum? Why? The maximum stress in the member is given as $\sigma_{max}$ (psi)
Added by Jeremy S.
Close
Step 1
Given that the change in length is 0.025%, we need to convert it to a decimal form by dividing it by 100. 0.025% / 100 = 0.00025 Show more…
Show all steps
Your feedback will help us improve your experience
Ajay Singhal and 86 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

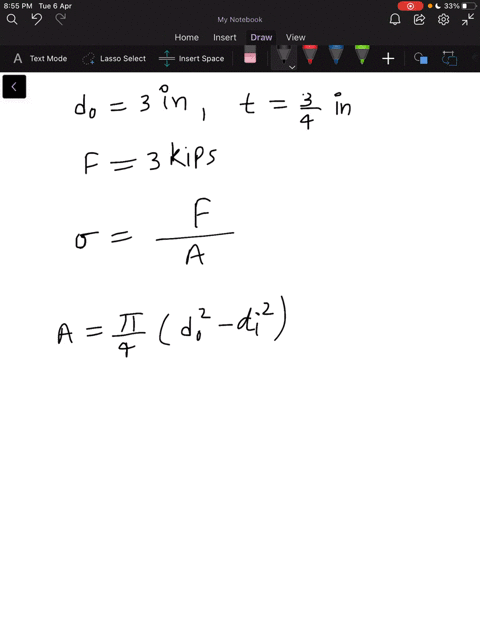

A circular tube $A B$ is fixed at one end and free at the other end. The tube is subjected to axial force at joint $B$. If the outer diameter of the tube is 3 in. and the thickness is $3 / 4$ in., calculate the maximum normal stress in the tube.
