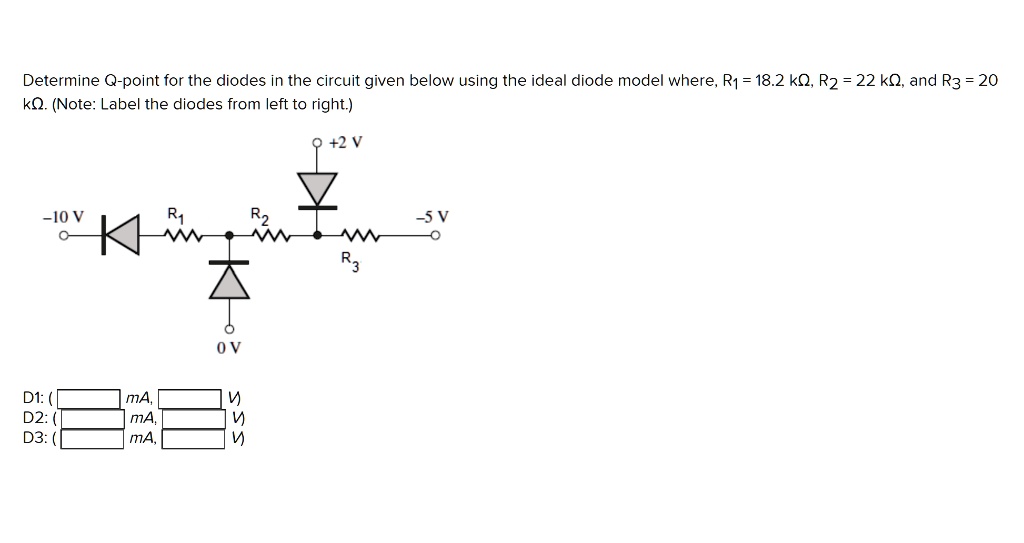

Determine Q-point for the diodes in the circuit given below using the ideal diode model where, R

Question

Adi S · Answer

Now let us solve for ideal diode type case. So assume that D2 is forward biased with current thr

Madhur L · Answer

Hi, this is a question based on circuit. So, here the diodes are so there is forward biased diod

Adi S · Answer

two or more same kind of diodes are connected in parallel with same cathode voltage. One of the

Sri K · Answer

In the circuit given in the question, we assume that the Zener diode is in OFF position. The mod

Madhur L · Answer

Hello students, in the second part of this question given as a circuit that is one diode and her
